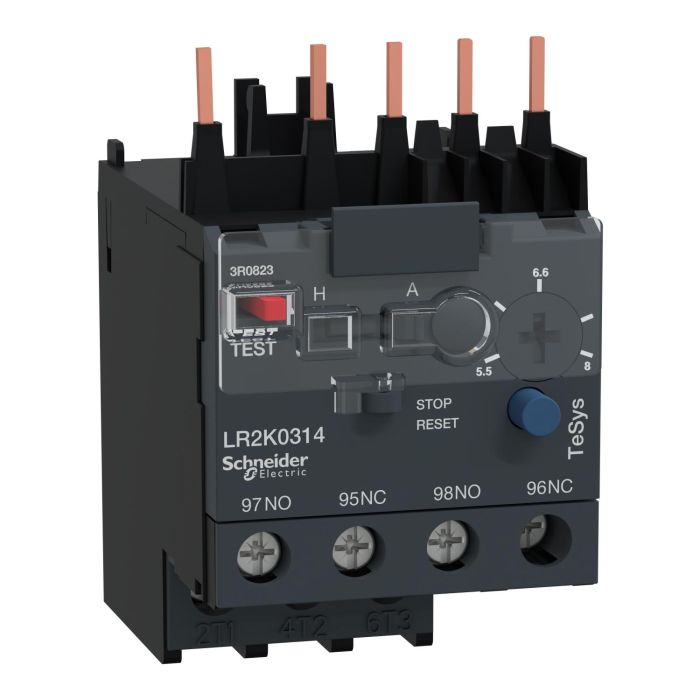

TESYS K OVERLOAD RELAY CL10 5.5 - 8A
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description
TeSys K Overload Relays
TeSys K With its integrated manual-automatic reset and simple installation, model K bimetallic overload relays are very reliable and cover the whole range of motor ratings up to 14A. They can be combined with TeSys K contactors to form an extremely compact starter.
Protection
Tesys K thermal overload relays are designed to protect a.c. circuits and motors against overloads. stalling, and phase loss
Compact size
The range delivers strong performance for its compact size and promises seamless integration in all applications.
Versatile
Commonly utilized across various sectors, including industry, infrastructure, and construction, this thermal overload relay is crafted for seamless control in simple applications.
Enhance your power solutions with our extensive range of accessories
Energy Sensor
Auxiliary Contact Block
Suppressor Module
Gain peace of mind, quality, and value for your installations
Optimized for common applications
TeSys K thermal overload relays are designed to protect a.c. circuits and motors against overloads.
Simple to select and install at an optimized budget, the range delivers strong performance for its compact size and promises seamless integrations in all applications.
High performance
Lorem Ipsum is simply dummy text of the printing and
Compact Dimensions
Lorem Ipsum is simply dummy text of the printing and
Continuity of service
Lorem Ipsum is simply dummy text of the printing and
Overview
| Product Name | TESYS K OVERLOAD RELAY CL10 5.5 - 8A |
|---|---|
| Tax Class | GST-18 |
| Range | TESYS |
| Product name | TESYS LRK |
| Product or component type | DIFFERENTIAL THERMAL OVERLOAD RELAY |
| Device short name | LR2K |
| Relay application | MOTOR PROTECTION |
| Product compatibility | LC7KLC1KLP4KLP1K |
| Network type | DCAC |
| Thermal overload class | CLASS 10A CONFORMING TO IEC 60947-4-1 |
| Thermal protection adjustment range | 5.5…8 A |
| [Ui] rated insulation voltage | POWER CIRCUIT: 690 V CONFORMING TO BS 4941POWER CIRCUIT: 690 V CONFORMING TO IEC 60947POWER CIRCUIT: 750 V CONFORMING TO VDE 0110 GROUP CPOWER CIRCUIT: 600 V CONFORMING TO CSA C22.2 NO 14 |
| Mounting support | UNDER CONTACTORPLATE, WITH SPECIFIC ACCESSORIESRAIL, WITH SPECIFIC ACCESSORIES |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 6 A FOR SIGNALLING CIRCUIT |
| Associated fuse rating | 6 A GG FOR SIGNALLING CIRCUIT CONFORMING TO VDE 06606 A GG FOR SIGNALLING CIRCUIT CONFORMING TO IEC 60947 |
| [Uimp] rated impulse withstand voltage | 6 KV |
| Power dissipation per pole | 2 W |
| Phase failure sensitivity | YES CONFORMING TO IEC 60947-4-1 |
| Local signalling | TRIP INDICATOR (YELLOW) |
| Control type | RED PUSH-BUTTON: TRIP TEST FUNCTIONBLUE PUSH-BUTTON: STOP AND MANUAL RESET SELECTOR SWITCH: MANUAL OR AUTOMATIC RESET |
| Connections - terminals | SCREW CLAMP TERMINALS 1 CABLE(S) 1.5…4 MM²SOLIDSCREW CLAMP TERMINALS 2 CABLE(S) 1.5…4 MM²SOLIDSCREW CLAMP TERMINALS 1 CABLE(S) 0.75…4 MM²FLEXIBLE WITHOUT CABLE ENDSCREW CLAMP TERMINALS 2 CABLE(S) 0.75…4 MM²FLEXIBLE WITHOUT CABLE ENDSCREW CLAMP TERMINALS 1 CABLE(S) 0.34…2.5 MM²FLEXIBLE WITH CABLE ENDSCREW CLAMP TERMINALS 2 CABLE(S) 0.34…1.5 MM²FLEXIBLE WITH CABLE END |
| Tightening torque | 1.3 N.M - ON SCREW CLAMP TERMINALS - WITH SCREWDRIVER PHILIPS NO 21.3 N.M - ON SCREW CLAMP TERMINALS - WITH SCREWDRIVER FLAT Ø 6 MM1.3 N.M - ON SCREW CLAMP TERMINALS - WITH SCREWDRIVER POZIDRIV NO 2 |
| Height | 58 MM |
| Width | 45 MM |
| Depth | 65 MM |
| Product weight | 0.145 KG |
| Standards | VDE 0660NF C 63-650IEC 60947BS 4941 |
| Product certifications | ULCSAUKCA |
| Protective treatment | TC CONFORMING TO IEC 60068TC CONFORMING TO DIN 50016 |
| IP degree of protection | IP2X CONFORMING TO IEC 60529 |
| Ambient air temperature for operation | -20…55 °C WITHOUT DERATING CONFORMING TO IEC 60947-30…60 °C WITH DERATING CONFORMING TO IEC 60947 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 M WITHOUT DERATING |
| Fire resistance | 850 °C CONFORMING TO IEC 60695-2-1 |
| Flame retardance | V1 CONFORMING TO UL 94REQUIREMENT 2 CONFORMING TO NF F 16-101REQUIREMENT 2 CONFORMING TO NF F 16-102 |
| Mechanical robustness | SHOCKS NO CONTACT: 10 GN FOR 11 MS CONFORMING TO IEC 60068-2-27SHOCKS NC CONTACT: 10 GN FOR 11 MS CONFORMING TO IEC 60068-2-27VIBRATIONS NO CONTACT: 2 GN, 5...300 HZ CONFORMING TO IEC 60068-2-6VIBRATIONS NC CONTACT: 2 GN, 5...300 HZ CONFORMING TO IEC 60068-2-6 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 CM |
| Package 1 Width | 7.100 CM |
| Package 1 Length | 8.200 CM |
| Package 1 Weight | 159.000 G |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 41 |
| Package 2 Height | 15.000 CM |
| Package 2 Width | 30.000 CM |
| Package 2 Length | 40.000 CM |
| Package 2 Weight | 6.756 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| REACh free of SVHC | ✓ |
| Toxic heavy metal free | ✓ |
| Mercury free | ✓ |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Recyclability potential, in % | 42 |
| Total lifecycle Carbon footprint | 6 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 0.8931643852450023 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 0.9 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.017124164486850613 |
| Carbon footprint of the distribution phase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.043940103606662645 |
| Carbon footprint of the installation phase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 4.986699999999999 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 5 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.3570299549275095 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.4 kg CO2 eq. |
| SCIP Number | E145d1bc-6ab6-4bb3-beeb-cb7d7952e3f6 |
| REACh Regulation | Free of Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant (Download) |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
