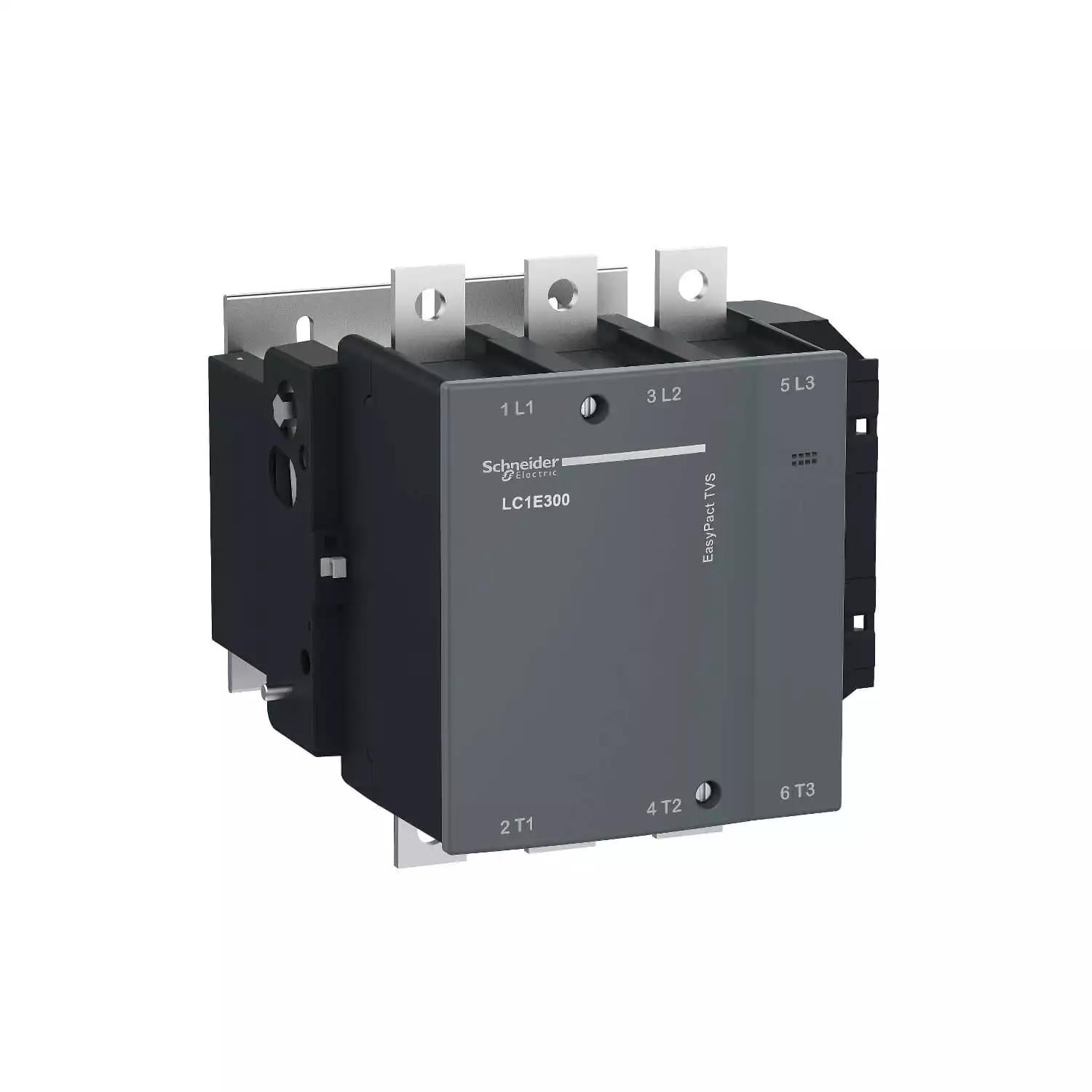

EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 300A - 110 V AC coil
EasyPact TVS contactor 3 poles for motor applications up to 300A 185kW@440V. It provides a 110V 50Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 213mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.5 Mcycles electrical durability AC-3 and 5 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
Product Name | 3P CONTACTOR EasyPact TVS 160KW 400V |
---|---|
Tax Class | GST-18 |
Range Name | Easypact TVS |
