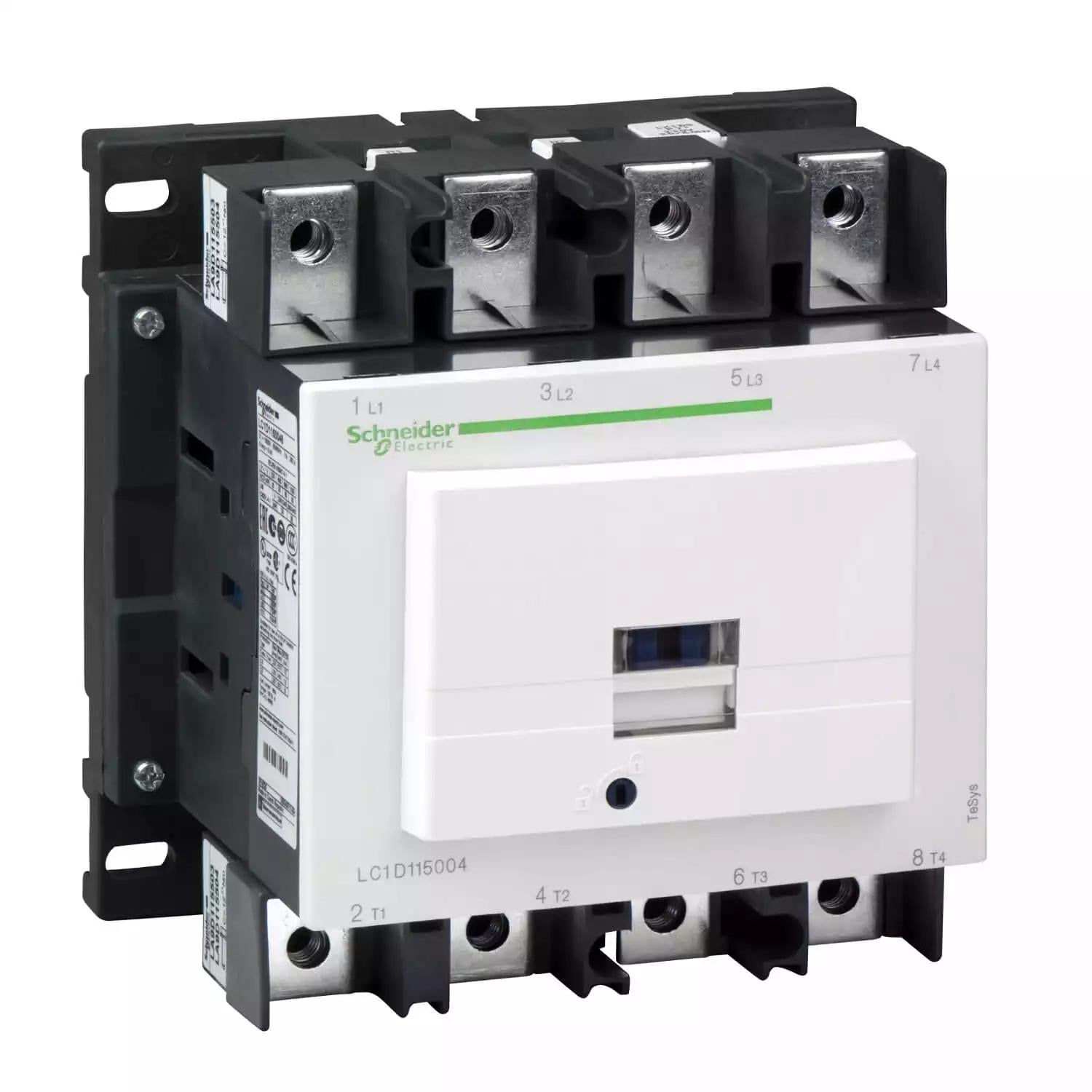

CONTACTOR
Images:
Image 360:
How to video:
Further offers for this product
Inclusive of all Taxes
In Stock
No sellers found for this product.
Inclusive of all Taxes
CONTACTOR
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description
TeSys Deca Advanced Contactors
Stay smart with the world's best-selling motor control solutions from the inventor of the world's first contactor Schneider Electric. For almost a century, TeSys motor controls have driven the industry with innovations in motor protection, monitoring, and control.
Fewer Parts, More Power
TeSys Deca Advanced contactors simplify your maintenance services with 90% less references needed. Associated with TeSys Deca electronic overload relays, reduces heat generation and energy consumption by up to 50%.
Simple to install
TeSys Deca Advanced contactors offer quick simple setup, while maintaining a compact size and suitable for safety applications thanks to mechanically linked contacts and mirror contacts
Efficiency maintenance
High-performance solutions with up to 20 In breaking capacity, multistandard compliance, and direct PLC connectivity for seamless integration.
Enhance your power solutions with our extensive range of accessories
Auxiliary Contact Blocks
Interface module
Suppressor Module
Gain peace of mind, quality, and value for your installations
Versatile power for every application
TeSys Deca contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This IEC contactor can be mounted on DIN rail or mounted directly to a panel.
Cost and space saving
Lorem Ipsum is simply dummy text of the printing and
Reliable
Lorem Ipsum is simply dummy text of the printing and
Robust
Lorem Ipsum is simply dummy text of the printing and
Overview
| Product Name | CONTACTOR |
|---|---|
| Tax Class | GST-18 |
| Coil Voltage | 220V AC |
| Number of Poles | 4P |
| Country of Origin | Czech Republic |
| Manufacturer | Schneider Electric |
| Range | TESYS |
| Range of product | TESYS DECA ADVANCED |
| Product or component type | CONTACTOR |
| Device short name | LC1D |
| Contactor application | RESISTIVE LOAD |
| Utilisation category | AC-3AC-3EAC-1AC-4 |
| Poles description | 4P |
| [Ue] rated operational voltage | POWER CIRCUIT: |
| [Ie] rated operational current | 200 A (AT |
| [Uc] control circuit voltage | 220 V AC 50/60 HZ |
| Compatibility code | LC1D |
| Pole contact composition | 4 NO |
| Protective cover | WITH |
| [Ith] conventional free air thermal current | 200 A (AT 60 °C) FOR POWER CIRCUIT |
| Irms rated making capacity | 1260 A AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947 |
| Rated breaking capacity | 1100 A AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947 |
| [Icw] rated short-time withstand current | 250 A 40 °C - 10 MIN FOR POWER CIRCUIT550 A 40 °C - 1 MIN FOR POWER CIRCUIT950 A 40 °C - 10 S FOR POWER CIRCUIT1100 A 40 °C - 1 S FOR POWER CIRCUIT |
| Associated fuse rating | 250 A GG AT |
| Average impedance | 0.6 MOHM - ITH 200 A 50 HZ FOR POWER CIRCUIT |
| Power dissipation per pole | 24 W AC-1 |
| [Ui] rated insulation voltage | POWER CIRCUIT: 600 V CSA CERTIFIEDPOWER CIRCUIT: 600 V UL CERTIFIEDPOWER CIRCUIT: 1000 V CONFORMING TO IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 8 KV CONFORMING TO IEC 60947 |
| Safety reliability level | B10D = 684932 CYCLES CONTACTOR WITH NOMINAL LOAD CONFORMING TO EN/ISO 13849-1B10D = 10000000 CYCLES CONTACTOR WITH MECHANICAL LOAD CONFORMING TO EN/ISO 13849-1 |
| Mechanical durability | 8 MCYCLES |
| Electrical durability | 0.8 MCYCLES 200 A AC-1 AT UE |
| Control circuit type | AC AT 50/60 HZ |
| Coil technology | BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR |
| Control circuit voltage limits | 0.3...0.5 UC (-40…70 °C):DROP-OUT AC 50/60 HZ0.8...1.15 UC (-40…55 °C):OPERATIONAL AC 50/60 HZ1...1.15 UC (55…70 °C):OPERATIONAL AC 50/60 HZ |
| Inrush power in VA | 280…350 VA 60 HZ COS PHI 0.8 (AT 20 °C)280…350 VA 50 HZ COS PHI 0.8 (AT 20 °C) |
| Hold-in power consumption in VA | 2…18 VA 60 HZ COS PHI 0.3 (AT 20 °C)2…18 VA 50 HZ COS PHI 0.3 (AT 20 °C) |
| Heat dissipation | 3…8 W AT 50/60 HZ |
| Operating time | 6...20 MS OPENING20...50 MS CLOSING |
| Maximum operating rate | 2400 CYC/H AT 60 °C |
| Connections - terminals | CONTROL CIRCUIT: LUGS-RING TERMINALS - EXTERNAL DIAMETER: 8 MMPOWER CIRCUIT: LUGS-RING TERMINALS - EXTERNAL DIAMETER: 25 MMPOWER CIRCUIT: BARS 1 - BUSBAR CROSS SECTION: 5 X 25 MM |
| Tightening torque | CONTROL CIRCUIT: 1.2 N.M - ON LUGS-RING TERMINALS - WITH SCREWDRIVER FLAT Ø 6 MM M3.5CONTROL CIRCUIT: 1.2 N.M - ON LUGS-RING TERMINALS - WITH SCREWDRIVER PHILIPS NO 2 M3.5POWER CIRCUIT: 12 N.M - ON LUGS-RING TERMINALS HEXAGONAL SCREW HEAD 13 MM M8POWER CIRCUIT: 12 N.M - ON BARS HEXAGONAL SCREW HEAD 13 MM M8CONTROL CIRCUIT: 1.2 N.M - ON LUGS-RING TERMINALS - WITH SCREWDRIVER POZIDRIV NO 2 M3.5 |
| Mounting support | RAILPLATE |
| Standards | CSA C22.2 NO 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 60947-4-1 |
| Product certifications | CCCDNVCSAULGOSTLROS (Lloyds register of shipping)BVGLRINAUKCA |
| IP degree of protection | IP20 FRONT FACE CONFORMING TO IEC 60529 |
| Protective treatment | TH CONFORMING TO IEC 60068-2-30 |
| Climatic withstand | CONFORMING TO IACS E10 EXPOSURE TO DAMP HEAT CONFORMING TO IEC 60947-1 ANNEX Q CATEGORY D EXPOSURE TO DAMP HEAT |
| Permissible ambient air temperature around the device | -40…60 °C60…70 °C WITH DERATING |
| Operating altitude | 0...3000 M |
| Fire resistance | 850 °C CONFORMING TO IEC 60695-2-1 |
| Flame retardance | V1 CONFORMING TO UL 94 |
| Mechanical robustness | VIBRATIONS CONTACTOR OPEN (2 GN, 5...300 HZ) VIBRATIONS CONTACTOR CLOSED (4 GN, 5...300 HZ) SHOCKS CONTACTOR CLOSED (15 GN FOR 11 MS) SHOCKS CONTACTOR OPEN (6 GN FOR 11 MS) |
| Height | 158 MM |
| Width | 155 MM |
| Depth | 115 MM |
| Net weight | 2.86 KG |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.8 CM |
| Package 1 Width | 21.2 CM |
| Package 1 Length | 18.5 CM |
| Package 1 Weight | 2.37 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| Mercury free | ✓ |
| PVC free | Yes |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Recyclability potential, in % | 54 |
| Total lifecycle Carbon footprint | 219 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 25.42976168377488 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 25 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.859021505025635 |
| Carbon footprint of the distribution phase [A4] | 0.9 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.3036665300058981 |
| Carbon footprint of the installation phase [A5] | 0.3 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 187.29208633093518 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 187 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 5.063122083295763 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 5 kg CO2 eq. |
| SCIP Number | A530c666-91dd-4119-8d61-f1c22a361ecb |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant By Exemption (Download) |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
