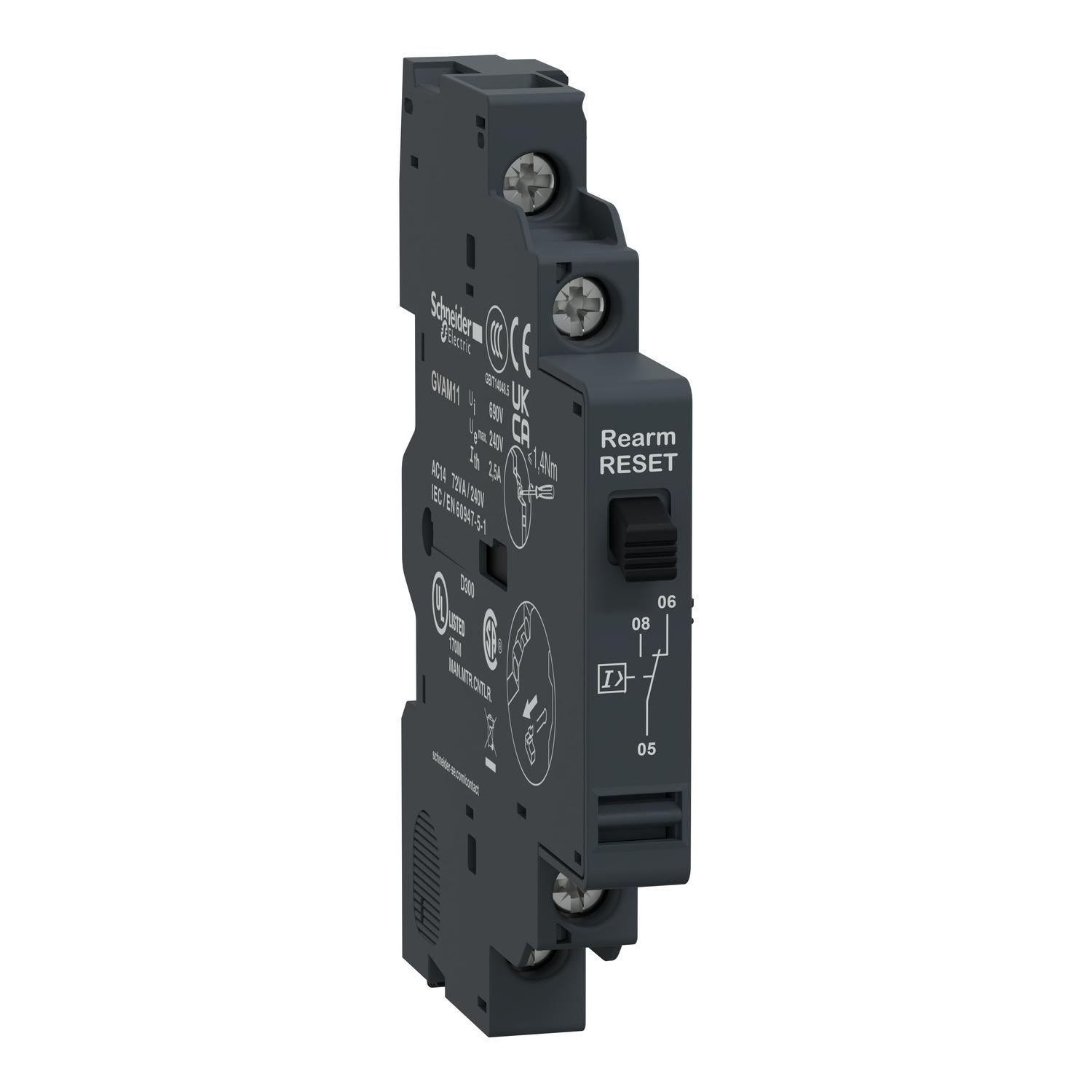

GV2 GV3 AUX SHORT CCT C/O LHS
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description
| range |
TeSys
|
|
|---|---|---|
| device short name |
GVAM
|
|
| product or component type |
Auxiliary contact block
|
|
| product compatibility |
GV2L
GV2ME GV2RT GV3L GV2P GV3P GV2LE |
|
| range compatibility |
GV2 GV2 circuit breaker
GV3 GV3P circuit breaker GV3 GV3L circuit breaker |
|
| mounting location |
Left side
|
|
| auxiliary contacts operation |
Short-circuit signal 1 C/O
|
|
| pole contact composition |
1 C/O
|
|
| connections - terminals |
Screw clamp terminals 1 cable(s) 1…2.5 mm²solid
Screw clamp terminals 2 cable(s) 1…2.5 mm²solid Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end |
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947-1
300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 |
|
|---|---|---|
| [Ue] rated operational voltage |
24...240 V AC
24...60 V DC |
|
| [Ith] conventional free air thermal current |
2.5 A for fault signalling
|
|
| protection type |
GB2CB... circuit breaker
GG fuse 10 A |
|
| mechanical durability |
100000 cycles
|
|
| minimum switching current |
5 mA
|
|
| minimum switching voltage |
17 V
|
|
| rated operational power in VA |
36 VA at 24 V AC-14 - electrical durability: 1000 cycles at 1.5 A
48 VA at 48 V AC-14 - electrical durability: 1000 cycles at 1 A 72 VA at 110…127 V AC-14 - electrical durability: 1000 cycles at 0.5 A 72 VA at 230…240 V AC-14 - electrical durability: 1000 cycles at 0.3 A |
|
| rated operational power in W |
120 W at 240 V DC-13 - electrical durability: 100000 cycles
140 W at 110 V DC-13 - electrical durability: 100000 cycles 140 W at 24 V DC-13 - electrical durability: 100000 cycles 180 W at 60 V DC-13 - electrical durability: 100000 cycles 240 W at 48 V DC-13 - electrical durability: 100000 cycles 15 W at 48 V DC-13 - electrical durability: 1000 cycles 24 W at 24 V DC-13 - electrical durability: 1000 cycles 9 W at 60 V DC-13 - electrical durability: 1000 cycles |
|
| tightening torque |
1.4 N.m - on screw clamp terminals
|
|
| height |
89 mm
|
|
| width |
9.3 mm
|
|
| depth |
66 mm
|
|
| net weight |
0.055 kg
|
| environmental characteristic |
Normal environment
|
|---|
Overview
| Product Name | GV2 GV3 AUX SHORT CCT C/O LHS |
|---|---|
| Tax Class | GST-18 |
| Range | TESYSTESYS DECA |
| Device short name | GVAM |
| Product or component type | AUXILIARY CONTACT BLOCK |
| Product compatibility | GV2PGV2LGV2MEGV2LEGV2RTGV2LMGV3PGV3L |
| Mounting location | LEFT SIDE |
| Auxiliary contacts operation | SHORT-CIRCUIT SIGNAL 1 C/O |
| Pole contact composition | 1 C/O |
| [Ui] rated insulation voltage | 690 V CONFORMING TO IEC 60947-1300 V CONFORMING TO UL 508300 V CONFORMING TO CSA C22.2 NO 14 |
| [Ue] rated operational voltage | 24...240 V AC24...60 V DC |
| [Ith] conventional free air thermal current | 2.5 A FOR FAULT SIGNALLING |
| Mechanical durability | 100000 CYCLES |
| Minimum switching current | 5 MA |
| Minimum switching voltage | 17 V |
| Protection type | GB2CB... CIRCUIT BREAKERGG FUSE 10 A |
| Rated operational power in VA | 36 VA AT 24 V AC-14 - ELECTRICAL DURABILITY: 1000 CYCLES AT 1.5 A48 VA AT 48 V AC-14 - ELECTRICAL DURABILITY: 1000 CYCLES AT 1 A72 VA AT 110…127 V AC-14 - ELECTRICAL DURABILITY: 1000 CYCLES AT 0.5 A72 VA AT 230…240 V AC-14 - ELECTRICAL DURABILITY: 1000 CYCLES AT 0.3 A |
| Rated operational power in W | 120 W AT 240 V DC-13 - ELECTRICAL DURABILITY: 100000 CYCLES140 W AT 110 V DC-13 - ELECTRICAL DURABILITY: 100000 CYCLES140 W AT 24 V DC-13 - ELECTRICAL DURABILITY: 100000 CYCLES180 W AT 60 V DC-13 - ELECTRICAL DURABILITY: 100000 CYCLES240 W AT 48 V DC-13 - ELECTRICAL DURABILITY: 100000 CYCLES15 W AT 48 V DC-13 - ELECTRICAL DURABILITY: 1000 CYCLES24 W AT 24 V DC-13 - ELECTRICAL DURABILITY: 1000 CYCLES9 W AT 60 V DC-13 - ELECTRICAL DURABILITY: 1000 CYCLES |
| Tightening torque | 1.4 N.M SCREW CLAMP TERMINALS |
| Height | 89 MM |
| Width | 9.3 MM |
| Depth | 66 MM |
| Product weight | 0.055 KG |
| Colour | DARK GREY |
| Environmental characteristic | NORMAL ENVIRONMENT |
| Standards | EN/IEC 60947-5-1UL 60947-4-1CSA C22.2 NO 60947-4-1IEC/EN 60335-1:CLAUSE 30.2IEC/EN 60335-2-40:ANNEX JJ |
| Product certifications | CB SchemeCEUKCACCCcULusEAC |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.5 CM |
| Package 1 Width | 13 CM |
| Package 1 Length | 15 CM |
| Package 1 Weight | 39 G |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 15 CM |
| Package 2 Width | 15 CM |
| Package 2 Length | 40 CM |
| Package 2 Weight | 1.17 KG |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 75 CM |
| Package 3 Width | 60 CM |
| Package 3 Length | 80 CM |
| Package 3 Weight | 47.44 KG |
| Warranty (in months) | 18 |
