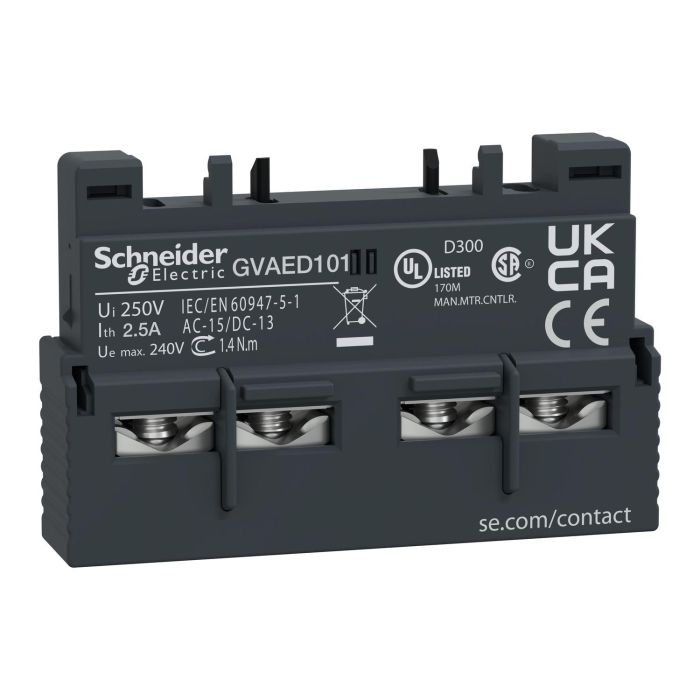

N/O FAULT CONTACT N/O INST FOR GV3P/L
Share
In stock
SKU
GVAED101
Regular Price
₹ 1,670
Special Price
₹ 785
53% Off
( Prices are all exclusive of taxes )
CHECK DELIVERY TIME & COD AVAILABILITY
| range |
TeSys
|
|
|---|---|---|
| device short name |
GVAED
|
|
| product or component type |
Auxiliary contact block
|
|
| product compatibility |
GV3P
GV3L |
|
| mounting location |
Front side
|
|
| auxiliary contacts operation |
Fault signal 1 NO
|
|
| pole contact composition |
2 NO
|
|
| connections - terminals |
Screw clamp terminals 1 cable(s) 1…2.5 mm²solid
Screw clamp terminals 2 cable(s) 1…2.5 mm²solid Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end |
|
| quantity per set |
Set of 1
|
| [Ui] rated insulation voltage |
600 V conforming to UL 508
690 V conforming to IEC 60947-1 600 V conforming to CSA C22.2 No 14 |
|
|---|---|---|
| [Ue] rated operational voltage |
24...240 V AC
24...60 V DC |
|
| [Ith] conventional free air thermal current |
2.5 A
|
|
| protection type |
GB2CB... circuit breaker
GG fuse 10 A |
|
| mechanical durability |
100000 cycles
|
|
| minimum switching current |
5 mA
|
|
| minimum switching voltage |
17 V
|
|
| rated operational power in VA |
300 VA at 48 V AC-15 - electrical durability: 100000 cycles
400 VA at 690 V AC-15 - electrical durability: 100000 cycles 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles 500 VA at 500 V AC-15 - electrical durability: 100000 cycles 650 VA at 440 V AC-15 - electrical durability: 100000 cycles 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles |
|
| rated operational power in W |
120 W at 240 V DC-13 - electrical durability: 100000 cycles
140 W at 110 V DC-13 - electrical durability: 100000 cycles 140 W at 24 V DC-13 - electrical durability: 100000 cycles 180 W at 60 V DC-13 - electrical durability: 100000 cycles 240 W at 48 V DC-13 - electrical durability: 100000 cycles |
|
| tightening torque |
1.4 N.m - on screw clamp terminals
|
|
| height |
11 mm
|
|
| width |
45 mm
|
|
| depth |
29 mm
|
|
| net weight |
0.05 kg
|
| environmental characteristic |
Normal environment
|
|---|
| Product Name | N/O FAULT CONTACT N/O INST FOR GV3P/L |
|---|---|
| Range Name | TeSys |
| Tax Class | GST-18 |
