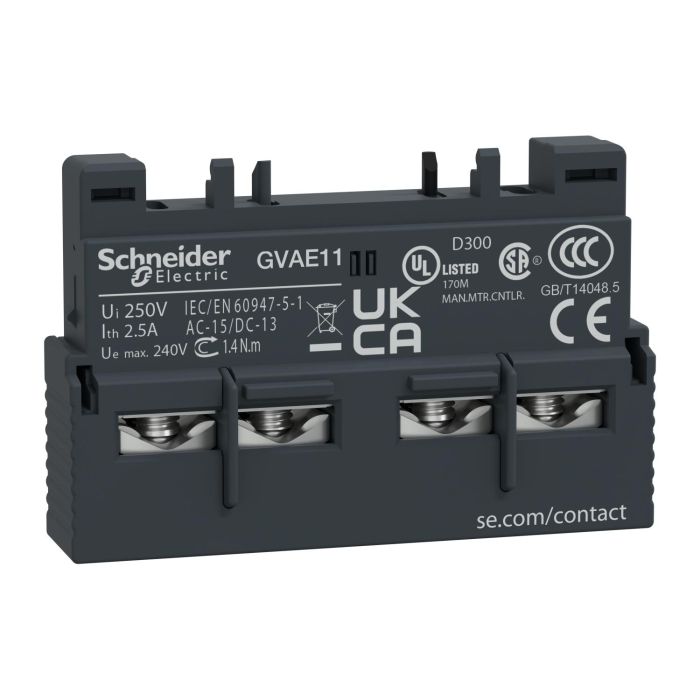

GV2 GV3 AUXILIARY N/O N/C TOP
Share
In stock
SKU
GVAE11
Regular Price
₹ 1,465
Special Price
₹ 689
53% Off
( Prices are all exclusive of taxes )
CHECK DELIVERY TIME & COD AVAILABILITY
| range |
TeSys
|
|
|---|---|---|
| device short name |
GVAE
|
|
| product or component type |
Auxiliary contact block
|
|
| product compatibility |
GV2P
GV2RT GV2ME GV3L GV2LE GV3P GV2L |
|
| mounting location |
Front side
|
|
| pole contact composition |
1 NO + 1 NC
|
|
| connections - terminals |
Screw clamp terminals 1 cable(s) 1…2.5 mm²solid
Screw clamp terminals 2 cable(s) 1…2.5 mm²solid Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end |
|
| quantity per set |
Set of 10
|
| [Ui] rated insulation voltage |
300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14 250 V conforming to IEC 60947-1 |
|
|---|---|---|
| [Ue] rated operational voltage |
24...240 V AC
24...60 V DC |
|
| [Ith] conventional free air thermal current |
2.5 A
|
|
| protection type |
GG fuse 10 A
GB2CB06 circuit breaker 10 A |
|
| mechanical durability |
100000 cycles
|
|
| minimum switching current |
5 mA
|
|
| minimum switching voltage |
17 V
|
|
| rated operational power in VA |
120 VA at 110…120 V AC-15 - electrical durability: 100000 cycles
120 VA at 230…240 V AC-15 - electrical durability: 100000 cycles 48 VA at 24 V AC-15 - electrical durability: 100000 cycles 60 VA at 48 V AC-15 - electrical durability: 100000 cycles |
|
| rated operational power in W |
15 W at 48 V DC-13 - electrical durability: 100000 cycles
24 W at 24 V DC-13 - electrical durability: 100000 cycles 9 W at 60 V DC-13 - electrical durability: 100000 cycles |
|
| tightening torque |
1.4 N.m - on screw clamp terminals
|
|
| height |
11 mm
|
|
| width |
45 mm
|
|
| depth |
29 mm
|
|
| net weight |
0.02 kg
|
| environmental characteristic |
Normal environment
|
|---|
| Product Name | GV2 GV3 AUXILIARY N/O N/C TOP |
|---|---|
| Range Name | TeSys |
| Tax Class | GST-18 |
