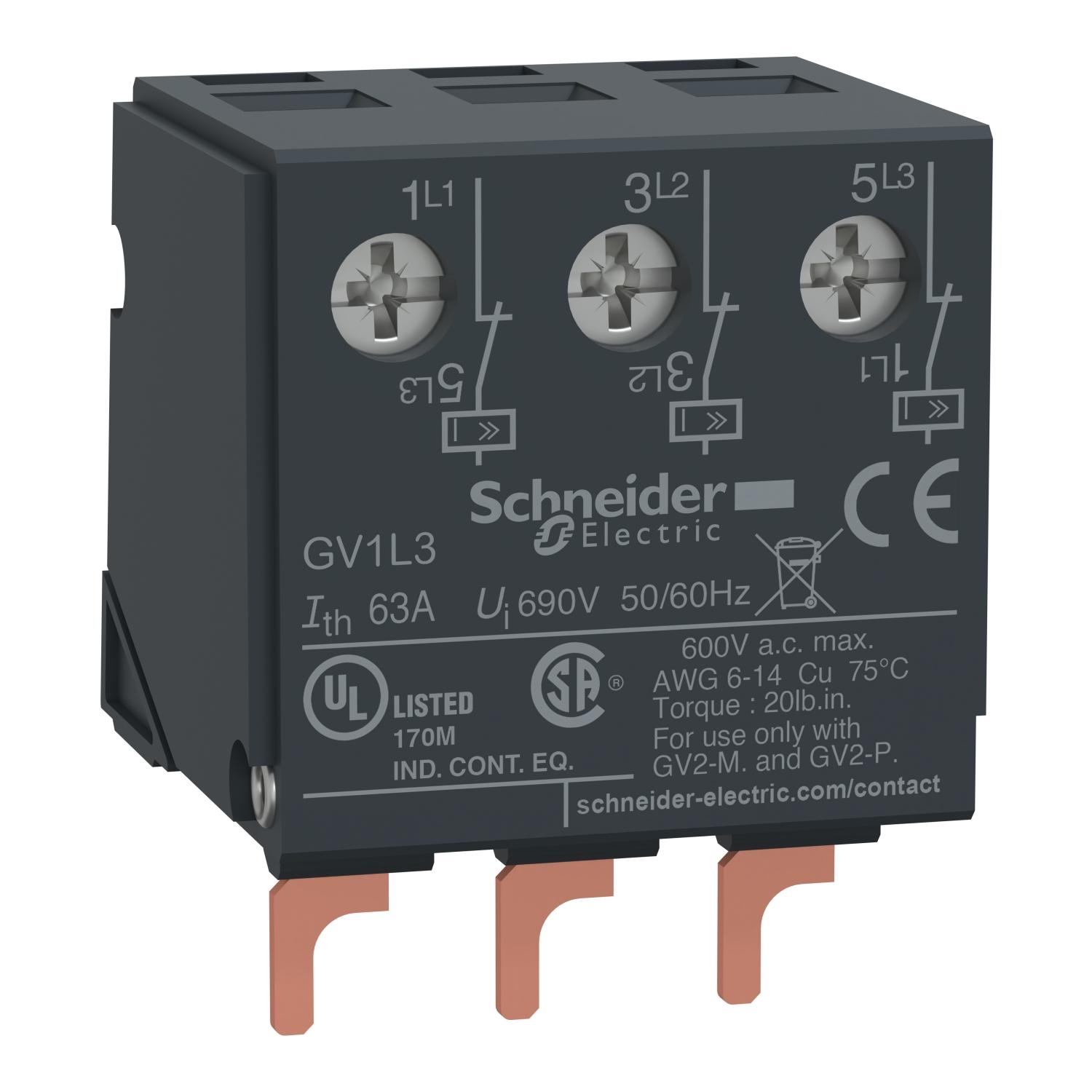

GV2ME-GV2P CURRENT LIMITING
Share
In stock
SKU
GV1L3
Regular Price
₹ 6,775
Special Price
₹ 3,184
53% Off
( Prices are all exclusive of taxes )
CHECK DELIVERY TIME & COD AVAILABILITY
| range |
TeSys
|
|
|---|---|---|
| accessory / separate part category |
Protection accessory
|
|
| product or component type |
Current limiting module
|
|
| function of module |
Increasing the breaking capacity of a circuit breaker
|
|
| range compatibility |
TeSys GV2
|
|
| product compatibility |
GV2RT
GV2ME GV2P GV2L |
|
| mounting location |
On top of the circuit breaker
|
|
| [Ie] rated operational current |
32 A
|
|
| [Ith] conventional free air thermal current |
63 A conforming to IEC 60947-1
|
|
| operating threshold |
1500 A
|
|
| breaking capacity |
<= 100 kA depending on protective device
|
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
| [Ui] rated insulation voltage |
690 V AC 50/60 Hz conforming to IEC 60947-1
|
| connections - terminals |
Screw clamp terminals 1 x 1.5…25 mm² rigid
Screw clamp terminals 2 x 1.5…10 mm² rigid Screw clamp terminals 1 x 1.5…25 mm² flexible without cable end Screw clamp terminals 2 x 1.5…10 mm² flexible without cable end Screw clamp terminals 1 x 1.5…16 mm² flexible with cable end Screw clamp terminals 2 x 1.5…4 mm² flexible with cable end |
|
|---|---|---|
| tightening torque |
2.2 N.m
|
|
| net weight |
0.13 kg
|
| Product Name | GV2ME-GV2P CURRENT LIMITING |
|---|---|
| Range Name | TeSys |
| Tax Class | GST-18 |
