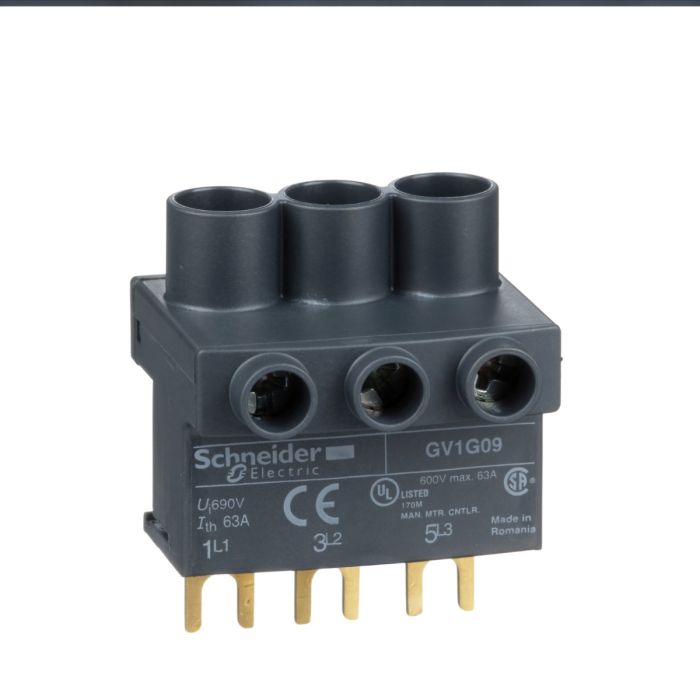

TERMINAL BLOCK GV2 G BUSBAR
GV1G09
₹ 2,585.00
₹ 1,318.35
Excl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
GV1G09
TERMINAL BLOCK GV2 G BUSBAR
| Seller | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹499
|
No sellers found for this product.
Out of stock
TERMINAL BLOCK GV2 G BUSBAR
₹ 2,585.00
₹ 1,318.35
Description
| range |
Linergy
|
|
|---|---|---|
| product name |
FT
|
|
| device short name |
GV1G
|
|
| product or component type |
Terminal block
|
|
| accessory / separate part category |
Connection accessory
|
|
| poles description |
3P
|
|
| range compatibility |
TeSys GV2
TeSys D TeSys K TeSys U TeSys LS1 |
| [Ie] rated operational current |
63 A
|
|
|---|---|---|
| mounting location |
Top
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947-1
|
|
| connections - terminals |
Screw clamp terminals 1 solid AWG 4
Screw clamp terminals 1 cable(s) 1.5…16 mm² flexible with cable end Screw clamp terminals 1 cable(s) 1.5…16 mm² flexible without cable end Screw clamp terminals 1 cable(s) 1.5…25 mm² solid Screw clamp terminals 2 cable(s) 1.5…4 mm² flexible with cable end Screw clamp terminals 2 cable(s) 1.5…6 mm² solid Screw clamp terminals 2 cable(s) 2.5…4 mm² flexible without cable end Screw clamp terminals 1 flexible AWG 4 |
|
| tightening torque |
1.7 N.m - on screw clamp terminals
2.2 N.m - on connector |
|
| net weight |
0.04 kg
|
