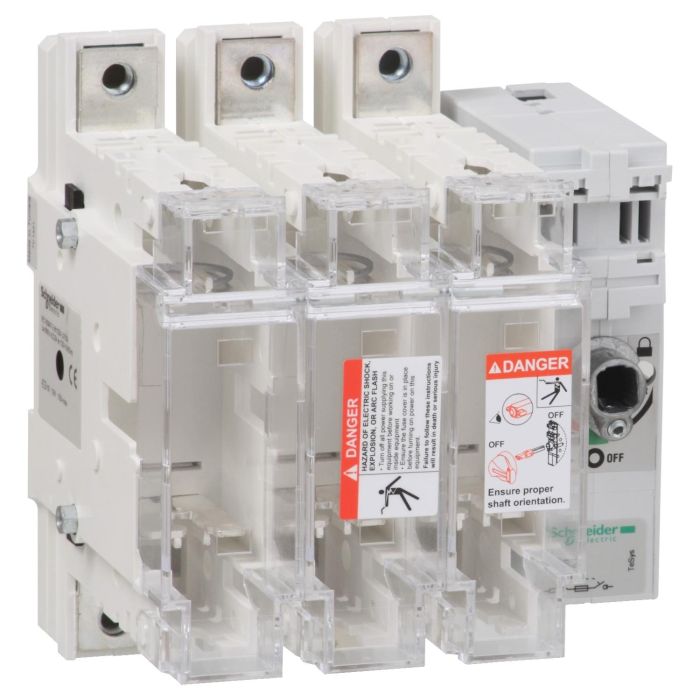

FUSE DISCONNECT SWITCH 3X 160A 00
SKU :
GS2LL3
FUSE DISCONNECT SWITCH 3X 160A 00
SKU:
GS2LL3
Images:
Image 360:
How to video:
Unfortunately this product is not available at this moment
Notify me when this product is in stock
Loading...
Further offers for this product
GS2LL3
FUSE DISCONNECT SWITCH 3X 160A 00
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
M.R.P.
Inclusive of all Taxes
Free shipping on orders above ₹499
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Minimum quantity allowed :
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
M.R.P.
₹ 102,365.00
₹ 61,419.00
M.R.P.
Inclusive of all Taxes
To View the best prices please Sign in / Register.
Available
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
Estimated delivery: Timelines may vary based on availability
Minimum quantity allowed :
FUSE DISCONNECT SWITCH 3X 160A 00
M.R.P.
₹ 102,365.00
₹ 61,419.00
M.R.P.
- Specifications
- Environmental Data
- Documents
- Reviews
Overview
| Product Name | FUSE DISCONNECT SWITCH 3X 160A 00 |
|---|---|
| Tax Class | GST-18 |
| Country of Origin | France |
| Manufacturer | Schneider Electric |
| Range | TESYS |
| Product name | TESYS GS |
| Device short name | GS2L |
| Product or component type | SWITCH-DISCONNECTOR-FUSE |
| Poles description | 3P |
| Protected poles description | 3T |
| Contacts type and composition | 3 NO |
| [Ith] conventional free air thermal current | 160 A (AT 40 °C) |
| [Ie] rated operational current | 125 A AT 440 V 2 POLES IN SERIES PER PHASE DC-23A125 A AT 440 V 2 POLES IN SERIES PER PHASE DC-23B125 A AT 690 V AC-23A125 A AT 690 V AC-23B160 A AT 400 V AC-23A160 A AT 400 V AC-23B160 A AT 500 V AC-23A160 A AT 500 V AC-23B |
| Fuse type | DIN |
| Fuse size | 00 |
| Network type | ACDC |
| Network frequency | 50/60 HZ |
| Type of operating handle | EXTERNAL RIGHT SIDEEXTERNAL FRONTAL |
| Mounting support | PLATE |
| [Ui] rated insulation voltage | 750 V AC 50/60 HZ |
| [Uimp] rated impulse withstand voltage | 8 KV |
| Rated operational power in W | 80 KW AT 400 V110 KW AT 500 V110 KW AT 690 V |
| Making capacity | 1600 A AT 400 V AC-23B |
| Breaking capacity | 1280 A AT 400 V (AC-23B) |
| Short-circuit withstand | 22.7 KA |
| Mechanical durability | 10000 CYCLES |
| Electrical durability | 1000 CYCLES AC-23A1000 CYCLES AC-23B200 CYCLES DC-23A200 CYCLES DC-23B |
| Connections - terminals | POWER CIRCUIT: BARS 20 MM²POWER CIRCUIT: LUGS-RING TERMINALS 50…95 MM² |
| [Icm] rated short-circuit making capacity | 100 KA AT 400 V WITH PROTECTION BY GG FUSES |
| Tightening torque | POWER CIRCUIT: 12 N.M |
| Standards | IEC 60947-3 |
| Product certifications | CE |
| IP degree of protection | IP20 CONFORMING TO IEC 60529 (WITH TERMINAL COVER) |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 850 °C FUSE COVER CONFORMING TO IEC 60695-2-1960 °C BODY CONFORMING TO IEC 60695-2-1 |
| Height | 162 MM |
| Width | 148 MM |
| Depth | 126.5 MM |
| Net weight | 1.8 KG |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.5 CM |
| Package 1 Width | 17.0 CM |
| Package 1 Length | 21.0 CM |
| Package 1 Weight | 1.839 KG |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 75.0 CM |
| Package 2 Width | 60.0 CM |
| Package 2 Length | 80.0 CM |
| Package 2 Weight | 49.58 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| REACh free of SVHC | ✓ |
| Toxic heavy metal free | ✓ |
| Mercury free | ✓ |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Total lifecycle Carbon footprint | 442 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 7.817611336032389 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 8 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.9604493927125507 |
| Carbon footprint of the distribution phase [A4] | 1 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.05360647773279352 |
| Carbon footprint of the installation phase [A5] | 0.1 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 432.3878787878789 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 432 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.3506757085020243 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.4 kg CO2 eq. |
| REACh Regulation | Free of Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant (Download) |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
