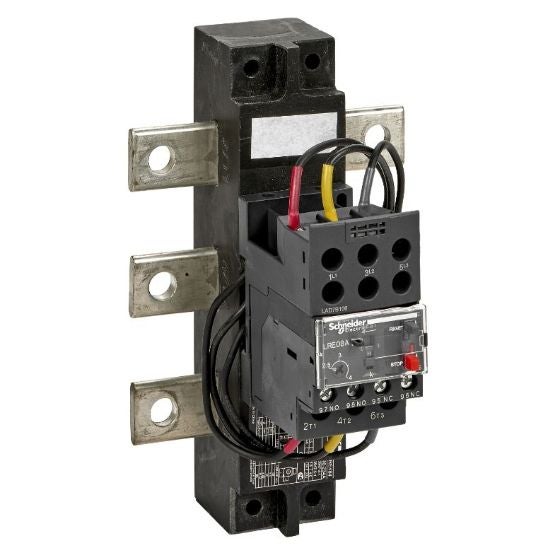

EasyPact TVS Thermal Overload Relay - 258..414 A
Share
In stock
SKU
LRE487
Regular Price
₹ 20,025
Special Price
₹ 9,212
54% Off
( Prices are all exclusive of taxes )
CHECK DELIVERY TIME & COD AVAILABILITY
| range |
EasyPact
|
|
|---|---|---|
| product name |
EasyPact TVS
|
|
| product or component type |
Differential thermal overload relay
|
|
| device short name |
LRE
|
|
| relay application |
Motor protection
|
|
| phase failure sensitivity |
Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1
|
| product compatibility |
LC1E300...630
|
|
|---|---|---|
| network type |
AC
|
|
| network frequency |
50...60 Hz
|
|
| mounting support |
Under contactor
Plate |
|
| thermal overload class |
Class 10A conforming to IEC 60947-4-1
|
|
| signalling function |
Relay trip indicator
|
|
| thermal protection adjustment range |
259…414 A
|
|
| tripping threshold |
1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
|
|
| mechanical robustness |
Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7
Vibrations: 3 Gn conforming to IEC 60068-2-6 |
|
| auxiliary contact composition |
1 NO + 1 NC
|
|
| [Ith] conventional free air thermal current |
5 A for signalling circuit
|
|
| [Ue] rated operational voltage |
<= 690 V AC
|
|
| associated fuse rating |
400 A aM for power circuit
500 A gG for power circuit 5 A gG for signalling circuit |
|
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947-4-1
|
|
| [Uimp] rated impulse withstand voltage |
6 kV
|
|
| local signalling |
Trip indicator
|
|
| control type |
Push-button red stop:
Push-button green reset: |
|
| temperature compensation |
-20…60 °C
|
|
| connection pitch |
48 mm
|
|
| connections - terminals |
Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end Power circuit: lugs Power circuit: bars - busbar cross section: 4 x 25 mm |
|
| tightening torque |
Power circuit: 35 N.m - on bars M10
Power circuit: 35 N.m - on lugs M10 Signalling circuit: 1.7 N.m - on screw clamp terminals |
|
| height |
134 mm
|
|
| width |
180 mm
|
|
| depth |
134 mm
|
|
| net weight |
2.4 kg
|
| standards |
IEC 60947-5-1
IEC 60947-4-1 |
|
|---|---|---|
| product certifications |
GOST
|
|
| protective treatment |
TH conforming to IEC 60068
|
|
| IP degree of protection |
IP00 conforming to IEC 60529
|
|
| ambient air temperature for operation |
-20…60 °C without derating conforming to IEC 60947-4-1
-20…70 °C with derating |
|
| ambient air temperature for storage |
-60…80 °C
|
|
| fire resistance |
850 °C conforming to IEC 60068-2-1
|
|
| dielectric strength |
6 kV at 50 Hz conforming to IEC 60255-5
|
|
| electromagnetic compatibility |
Surge withstand: 6 kV conforming to IEC 60801-5
|
Country of Origin: China
