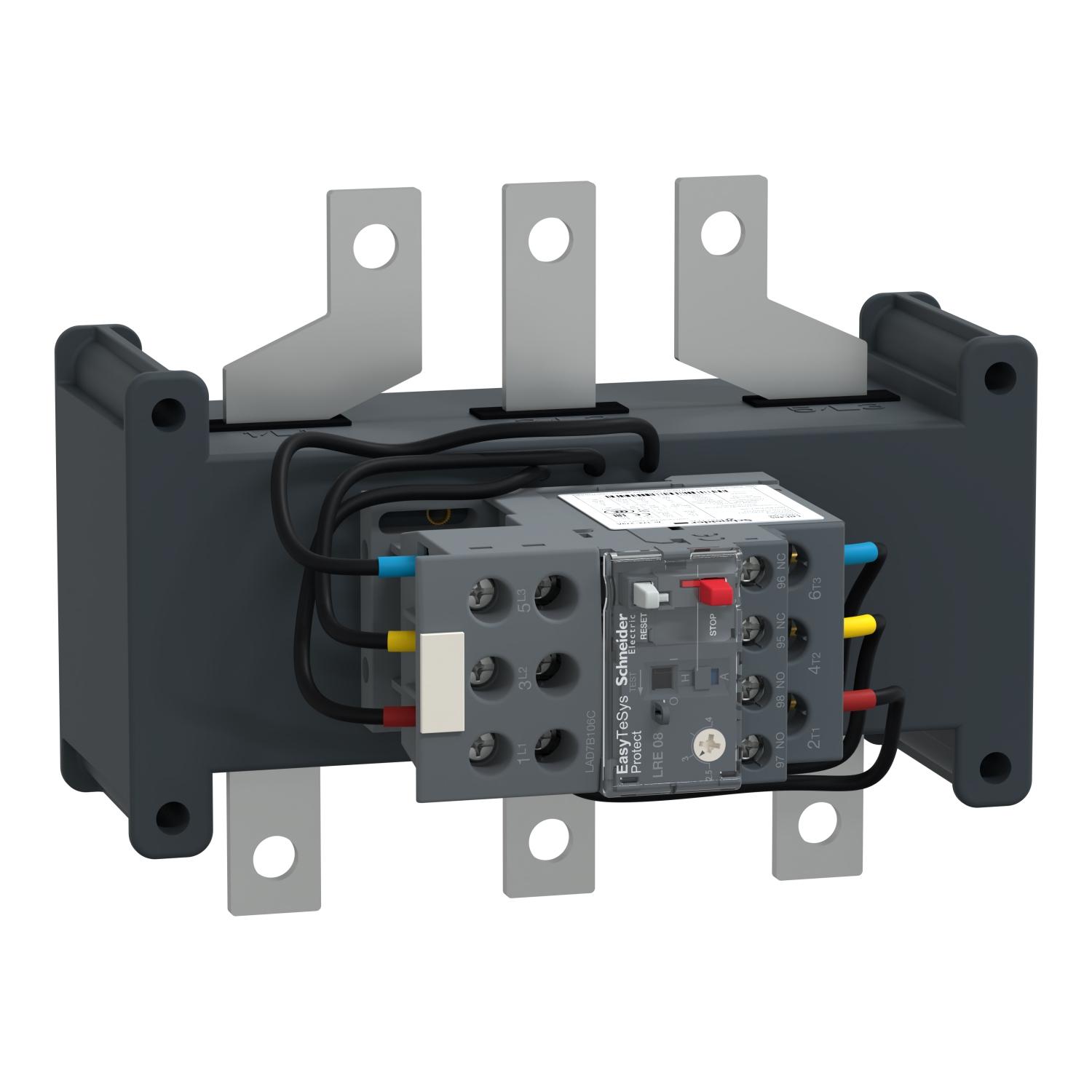

EasyPact TVS Thermal Overload Relay - 174..279 A

Share
In stock
SKU
LRE485
Regular Price ₹ 15,105 Special Price ₹ 6,948
54% Off ( Prices are all exclusive of taxes )
CHECK DELIVERY TIME & COD AVAILABILITY

Main
range
EasyPact

product name
EasyPact TVS

product or component type
Differential thermal overload relay

device short name
LRE

relay application
Motor protection

phase failure sensitivity
Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1

Complementary
product compatibility
LC1E200...630

network type
AC

network frequency
50...60 Hz

mounting support
Under contactor
Plate

thermal overload class
Class 10A conforming to IEC 60947-4-1

signalling function
Relay trip indicator

thermal protection adjustment range
174…279 A

tripping threshold
1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

mechanical robustness
Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7
Vibrations: 3 Gn conforming to IEC 60068-2-6

auxiliary contact composition
1 NO + 1 NC

[Ith] conventional free air thermal current
5 A for signalling circuit

[Ue] rated operational voltage
<= 690 V AC

associated fuse rating
315 A gG for power circuit
315 A aM for power circuit
5 A gG for signalling circuit

[Ui] rated insulation voltage
690 V conforming to IEC 60947-4-1

[Uimp] rated impulse withstand voltage
6 kV

local signalling
Trip indicator

control type
Push-button red stop:
Push-button green reset:

temperature compensation
-20…60 °C

connection pitch
48 mm

connections - terminals
Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end
Power circuit: lugs
Power circuit: bars - busbar cross section: 4 x 25 mm

tightening torque
Power circuit: 35 N.m - on bars M10
Power circuit: 35 N.m - on lugs M10
Signalling circuit: 1.7 N.m - on screw clamp terminals

height
134 mm

width
180 mm

depth
134 mm

net weight
2.2 kg

Environment
standards
IEC 60947-4-1
IEC 60947-5-1

product certifications
GOST

protective treatment
TH conforming to IEC 60068

IP degree of protection
IP00 conforming to IEC 60529

ambient air temperature for operation
-20…60 °C without derating conforming to IEC 60947-4-1
-20…70 °C with derating

ambient air temperature for storage
-60…80 °C

fire resistance
850 °C conforming to IEC 60068-2-1

dielectric strength
6 kV at 50 Hz conforming to IEC 60255-5

electromagnetic compatibility
Surge withstand: 6 kV conforming to IEC 60801-5




Country of Origin: China
