ComPacT NSX BSCM Modbus SL ULP
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description

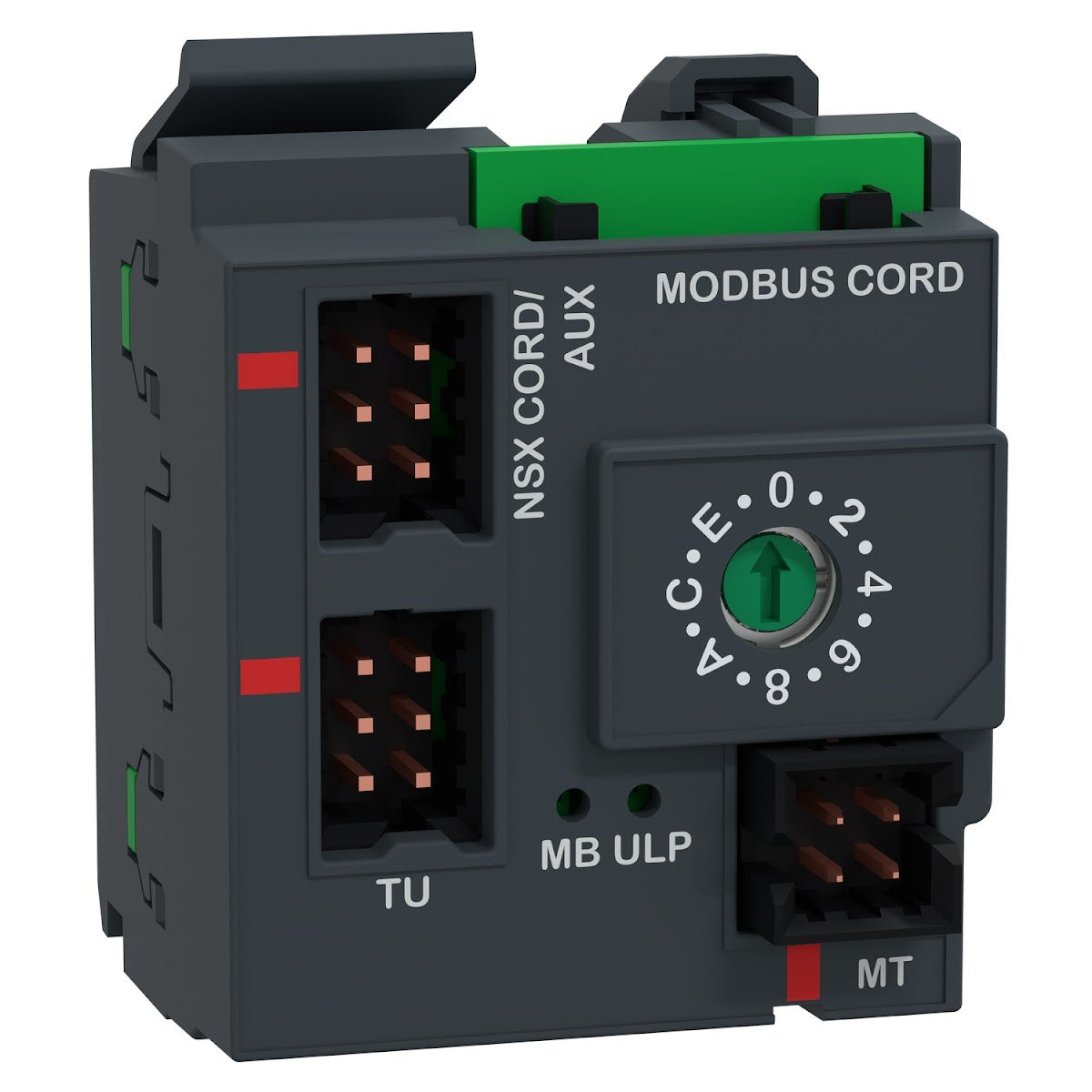

This is a breaker status communication module with native Modbus and ULP communication for ComPacT NSX circuit breakers. The optional BSCM Modbus SL/ULP module for ComPacT NSX is used to acquire device status indications and control the communicating remote-control function. It includes a memory used to manage the maintenance indicators. It serves as a converter between the analog outputs of the device indication contacts (O/F, SD, SDE) and the digital communicating functions. It is needed for communication of status indications, controls and measurements. The BSCM is installed inside the circuit breaker behind the front cover. It has a native Modbus interface which is connected to Modbus Hub to daisy chain the Modbus connection. It is connected to external Ethemet or Modbus interfaces (IFE/IFM) via the NSX cord terminal block via the ULP mode. The BSCM Modbus SL/ULP module’s operational voltage is 24VDC.
Overview
| Product Name | ComPacT NSX BSCM Modbus SL ULP |
|---|---|
| Tax Class | GST-18 |
| Range of product | COMPACT NSX100...250COMPACT NSX400...630 |
| Device short name | BSCM MBSL/ULP |
| Product or component type | COMMUNICATION MODULE |
| Device application | COMMUNICATION |
| Range compatibility | COMPACT NSX100COMPACT NSX160COMPACT NSX250COMPACT NSX400COMPACT NSX630 |
| Function of module | CONTROL CIRCUIT BREAKERGET BREAKING STATUSGATEWAY FOR MODBUS-SL CONNECTED DEVICES |
| Communication network type | MODBUS, MODBUS SERIAL LINE SLAVE9.6...38.4 KBAUDS |
| Mounting mode | BY CLIPS |
| Accuracy class | CLASS 2 POWER SUPPLY |
| [Us] rated supply voltage | 24 V DC |
| Input voltage | 24 V DC +/- 10 % |
| Current consumption | 40 MA 24 V DC ROOM TEMPERATURE |
| Power consumption in W | 0.96 W |
| Connections - terminals | PLUG-IN CONNECTOR |
| Product certifications | UL |
| Standards | CISPR 32IEC 61000-4-3IEC 61000-4-6IEC 61000-4-4IEC 61000-4-5IEC 61000-4-2 |
| Height | 34 MM |
| Width | 28 MM |
| Depth | 30 MM |
| Product weight | 14 G |
| Relative humidity | 5…85 % AT 55 °C WITHOUT CONDENSATION |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…70 °C |
| Pollution degree | 3 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 CM |
| Package 1 Width | 4.400 CM |
| Package 1 Length | 6.200 CM |
| Package 1 Weight | 32.000 G |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 90 |
| Package 2 Height | 15.000 CM |
| Package 2 Width | 30.000 CM |
| Package 2 Length | 40.000 CM |
| Package 2 Weight | 3.392 KG |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 720 |
| Package 3 Height | 45.000 CM |
| Package 3 Width | 60.000 CM |
| Package 3 Length | 80.000 CM |
| Package 3 Weight | 35.000 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| Mercury free | ✓ |
| Halogen-free status | Halogen free plastic parts product |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Recyclability potential, in % | 2 |
| Total lifecycle Carbon footprint | 42 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 1.863658443527378 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 2 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.02747621424936816 |
| Carbon footprint of the distribution phase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.001868012457287399 |
| Carbon footprint of the installation phase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 39.3696124306348 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 39 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.2553666964556526 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.3 kg CO2 eq. |
| SCIP Number | 420bf2d3-b34e-4e58-baf2-c96c36dac5a4 |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant By Exemption (Download) |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
