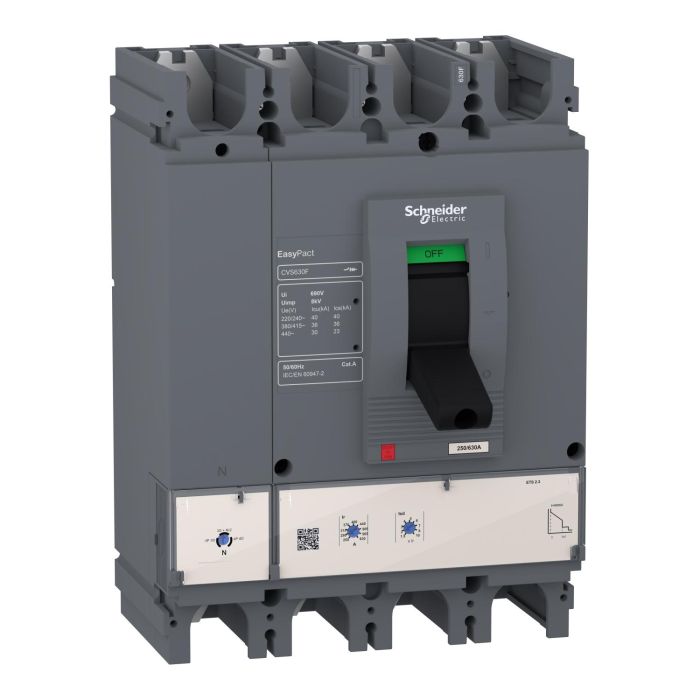

Circuit Breaker Easypact Cvs400F, 36 Ka At 415 Vac, 400 A Rating Ets 2.3 Electronic Trip Unit, 4P 4D
Description
EasyPact CVS400F is a 4 poles 4d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds an electronic ETS 2.3 trip unit, with 400A rating. ETS 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS400F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
Product Details
| Product Name | Circuit Breaker Easypact Cvs400F, 36 Ka At 415 Vac, 400 A Rating Ets 2.3 Electronic Trip Unit, 4P 4D |
|---|---|
| Range Name | EasyPact CVS |
| Category | MCCB |
| Tax Class | GST-18 |
| Current Rating | 400A |
| Number of Poles | 4P |
