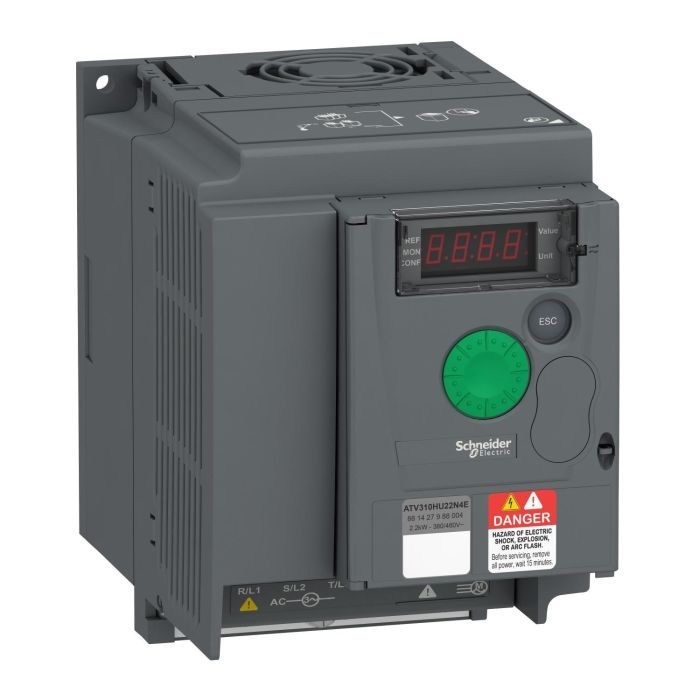

ATV310 2.2kW 3 Phase 380V

In stock
SKU
ATV310HU22N4E
Regular Price ₹ 40,351 Special Price ₹ 17,553
56% Off ( Prices are all exclusive of taxes )
CHECK DELIVERY TIME & COD AVAILABILITY

Main
range of product
Easy Altivar 310

product or component type
Variable speed drive

product specific application
Simple machine

assembly style
With heat sink

device short name
ATV310

network number of phases
Three phase

[Us] rated supply voltage
380...460 V - 15...10 %

motor power kW
2.2 kW

motor power hp
3 hp

noise level
50 dB

Complementary
product destination
Asynchronous motors

quantity per set
Set of 1

EMC filter
Without EMC filter

type of cooling
Integrated fan

supply frequency
50/60 Hz +/- 5 %

communication port protocol
Modbus

connector type
RJ45 (on front face) for Modbus

physical interface
2-wire RS 485 for Modbus

transmission frame
RTU for Modbus

transmission rate
4800 bit/s
9600 bit/s
19200 bit/s
38400 bit/s

number of addresses
1…247 for Modbus

communication service
Read holding registers (03) 29 words
Write single register (06) 29 words
Write multiple registers (16) 27 words
Read/write multiple registers (23) 4/4 words
Read device identification (43)

line current
7.2 A

apparent power
5.7 kVA

prospective line Isc
5 kA

continuous output current
5.5 A at 4 kHz

maximum transient current
8.3 A for 60 s

power dissipation in W
66.32 W at In

speed drive output frequency
0.5…400 Hz

nominal switching frequency
4 kHz

switching frequency
2...12 kHz adjustable

speed range
1…20

transient overtorque
170…200 % of nominal motor torque depending on drive rating and type of motor

braking torque
Up to 150 % of nominal motor torque with braking resistor at high inertia
Up to 70 % of nominal motor torque without braking resistor

asynchronous motor control profile
Quadratic voltage/frequency ratio
Energy saving ratio
Sensorless flux vector control

motor slip compensation
Preset in factory
Adjustable

output voltage
380...460 V three phase

electrical connection
Terminal, clamping capacity: 1.5...2.5 mm² (L1, L2, L3, PA/+, PB, U, V, W)

tightening torque
0.8…1 N.m

insulation
Electrical between power and control

supply
Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and short-circuit protection
Internal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection

analogue input number
1

analogue input type
Configurable current AI1 0...20 mA 250 Ohm
Configurable voltage AI1 0...10 V 30 kOhm
Configurable voltage AI1 0...5 V 30 kOhm

discrete input number
4

discrete input type
Programmable LI1...LI4 24 V 18...30 V

discrete input logic
Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm
Positive logic (source), 0...< 5 V (state 0), > 11 V (state 1)

sampling duration
10 ms for analogue input
20 ms, tolerance +/- 1 ms for logic input

linearity error
+/- 0.3 % of maximum value for analogue input

analogue output number
1

analogue output type
AO1 software-configurable voltage: 0...10 V, impedance: 470 Ohm, resolution 8 bits
AO1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 8 bits

discrete output number
2

discrete output type
Logic output LO+, LO-
Protected relay output R1A, R1B, R1C 1 C/O

minimum switching current
5 mA at 24 V DC for logic relay

maximum switching current
2 A at 250 V AC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay
2 A at 30 V DC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay
3 A at 250 V AC on resistive load cos phi = 1 L/R = 0 ms for logic relay
4 A at 30 V DC on resistive load cos phi = 1 L/R = 0 ms for logic relay

acceleration and deceleration ramps
U
Linear from 0...999.9 s
S

braking to standstill
By DC injection, <30 s

protection type
Line supply overvoltage
Line supply undervoltage
Overcurrent between output phases and earth
Overheating protection
Short-circuit between motor phases
Against input phase loss in three-phase
Thermal motor protection via the drive by continuous calculation of I²t

frequency resolution
Analog input: converter A/D, 10 bits
Display unit: 0.1 Hz

time constant
20 ms +/- 1 ms for reference change

operating position
Vertical +/- 10 degree

height
151 mm

width
105 mm

depth
143 mm

net weight
1.1 kg

Environment
electromagnetic compatibility
Electrical fast transient/burst immunity test - test level: level 4 conforming to EN/IEC 61000-4-4
Electrostatic discharge immunity test - test level: level 3 conforming to EN/IEC 61000-4-2
Immunity to conducted disturbances - test level: level 3 conforming to EN/IEC 61000-4-6
Radiated radio-frequency electromagnetic field immunity test - test level: level 3 conforming to EN/IEC 61000-4-3
Voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11
Surge immunity test - test level: level 3 conforming to EN/IEC 61000-4-5

standards
EN/IEC 61800-3
EN/IEC 61800-5-1

IP degree of protection
IP20 without blanking plate on upper part
IP41 top

pollution degree
2 conforming to EN/IEC 61800-5-1

environmental characteristic
Dust pollution resistance class 3S2 conforming to EN/IEC 60721-3-3
Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3

shock resistance
15 gn conforming to EN/IEC 60068-2-27 for 11 ms

relative humidity
5…95 % without condensation conforming to IEC 60068-2-3
5…95 % without dripping water conforming to IEC 60068-2-3

ambient air temperature for storage
-25…70 °C

ambient air temperature for operation
-10…55 °C without derating
55…60 °C protective cover from the top of the drive removed with current derating 2.2 % per °C

operating altitude
<= 1000 m without derating
More Information
Product Name ATV310 2.2kW 3 Phase 380V
Range Name Altivar 12
Tax Class GST-18
Net Weight 1.1KG
MPG Description Gen. Purpose Drive
MPG D6
Chapter ID 85044090
