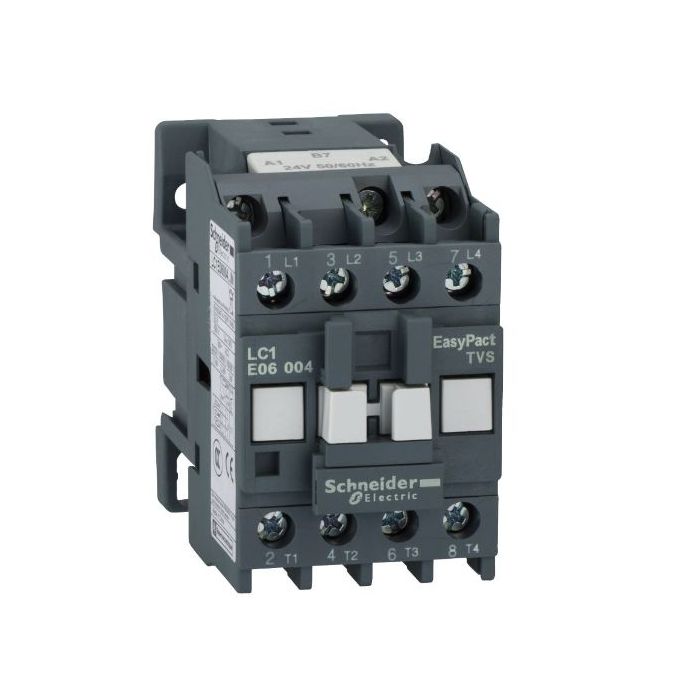

4P CONTACTOR 40A AC1 (4NO) 220V WB

Share
In stock
SKU
LC1E18004M5WBIN
Regular Price ₹ 2,380 Special Price ₹ 1,095
54% Off ( Prices are all exclusive of taxes )
Vendor ID
63480
62952
500015791
28556
810
1168
80769
26288
10809
14018
1385
500065278
1434
13956
69481
11774
4846
1161
1125
32914
14257
17115
1949
5836
500012302
7136
500060069
1507
637
1244
500011651
1274
94322
101621
1471
18376
4345
836
16261
1081
4481
115327
1322
94427
79762
19109
16992
1662
12234
73320
10175
140157
104080
500042617
500060068
29260
27708
13279
500016120
9469
1537
1014
1687
140830
1399
13431
500015354
500044334
103072
500017115
1143
1723
1870
500063811
1020
129136
500060209
500053455
500062160
9306
500012069
500045161
935
CHECK DELIVERY TIME & COD AVAILABILITY
Ajax Loader

Main
range
EasyPact

product name
EasyPact TVS

product or component type
Contactor

device short name
LC1E

contactor application
Resistive load

utilisation category
AC-1

poles description
4P

power pole contact composition
4 NO

[Ue] rated operational voltage
Power circuit: <= 690 V AC 50/60 Hz

[Ie] rated operational current
40 A (at <40 °C) at <= 415 V AC AC-1 for power circuit

control circuit type
AC at 50 Hz wide range

height
74 mm

width
45 mm

depth
80 mm

net weight
0.34 kg

colour
Grey (RAL 7011)

Complementary
auxiliary contact composition
Without

[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947

[Ui] rated insulation voltage
690 V conforming to IEC 60947-4-1

overvoltage category
III

Irms rated making capacity
180 A at 440 V AC for power circuit conforming to IEC 60947-4-1

rated breaking capacity
144 A at 440 V for power circuit conforming to IEC 60947

[Icw] rated short-time withstand current
145 A 40 °C - 10 s for power circuit
84 A 40 °C - 60 s for power circuit
40 A 40 °C - 600 s for power circuit

associated fuse rating
40 A gG at <= 690 V coordination type 1 for power circuit

average impedance
2.5 mOhm - Ith 40 A 50 Hz for power circuit

power dissipation per pole
2.6 W AC-1

control circuit voltage limits
Drop-out: 0.3...0.6 Uc at 50 Hz (at <55 °C)
Operational: 0.7...1.25 Uc at 50 Hz (at <55 °C)

operating time
12...22 ms on closing
4...19 ms on opening

mechanical durability
10 Mcycles

maximum operating rate
1800 cyc/h 60 °C

inrush power in VA
95 VA 50 Hz cos phi 0.75 (at 20 °C)

hold-in power consumption in VA
8.5 VA 50 Hz cos phi 0.21 (at 20 °C)

heat dissipation
2…3 W for control circuit

electrical durability
0.3 Mcycles AC-1

mounting support
Plate
DIN rail

connections - terminals
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid

tightening torque
Power circuit: 1.2 N.m
Control circuit: 1.2 N.m

Environment
standards
IEC 60947-5-1
IEC 60947-4-1

product certifications
EAC

IP degree of protection
IP20 conforming to IEC 60529

protective treatment
TH conforming to IEC 60068

pollution degree
3

ambient air temperature for operation
-5…55 °C

ambient air temperature for storage
-60…80 °C

permissible ambient air temperature around the device
-20…70 °C at Uc

operating altitude
3000 m

fire resistance
850 °C conforming to IEC 60695-2-1

mechanical robustness
Vibrations contactor open: 1.5 Gn, 5...300 Hz
Vibrations contactor closed: 3 Gn, 5...300 Hz
Shocks contactor open: 7 Gn for 11 ms
Shocks contactor closed: 10 Gn for 11 ms
