TeSys K control relay - 4 NO - <= 690 V - 110 V AC coil
- Description
- Specifications
- Reviews
Description
TeSys K Control Relays
TeSys K is a global market leader's innovative motor control and management solution. TeSys offers connected, efficient products and solutions for switching and protection of motors and electrical loads in compliance with all major global electrical standards.
Efficiency
Integrating automation with advanced power systems significantly boosts the efficiency of motors. This ensures optimal performance, resulting in enhanced operational outcomes.
Cost effective
Compatible with all market voltages and offers compact dimensions, specifically for K and SK relays (27mm width). It provides multiple connection methods, including screw clamp terminals, spring terminals, and PCB welds.
Ensuring Safety
Their compact structure allows for easy integration into equipment with limited space, making them an ideal choice for modern industrial setups.
Enhance your power solutions with our extensive range of accessories

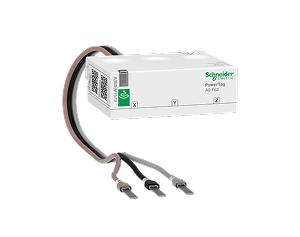

Energy Sensor

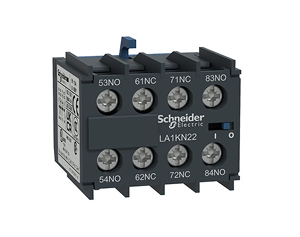

Auxiliary Contact Block
Suppressor Module
Gain peace of mind, quality, and value for your installations
Simple, robust, and compact, TeSys K is optimized for common applications
Designed for both AC and DC control circuits (AC15, DC13), the relays feature four contacts in various NO and NC combinations, ensuring simultaneous action between contacts. Available in different coil voltages for AC and DC, the relays offer instantaneous contacts and optional time delay auxiliary contact blocks. Additionally, mounting and marking accessories are included
High performance
Lorem Ipsum is simply dummy text of the printing and
Compact Dimensions
Lorem Ipsum is simply dummy text of the printing and
Continuity of service
Lorem Ipsum is simply dummy text of the printing and
Overview
| Net weight | 0.18 kg |
|---|---|
| Product or Component Type | control relay |
| [Uc] Control Circuit Voltage | 110 V AC 50/60 Hz |
| Pole Contact Composition | 4 NO |
| Mechanical Durability | 10 Mcycles |
| Protective Treatment | TC conforming to IEC 60068 |
| Immunity to Microbreaks | 2 ms |
| Insulation Resistance | > 10 MOhm |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Contactor Application | control circuit |
| Non Overlap Distance | 0.5 mm |
| Range of Product | TeSys K control relay |
| Standards | EN/IEC 60947-4-1,GB/T 14048.4,UL 60947-4-1,CSA C22.2 No 60947-4-1,JIS C8201-4-1 |
| Mechanical Robustness | vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6,vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6,shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27,shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 |
| Associated Fuse Rating | 10 A gG conforming to IEC 60947,10 A gG conforming to VDE 0660 |
| Mounting support | rail,plate |
| Control Circuit Type | AC at 50/60 Hz |
| Heat Dissipation | 1.3-1.3 W |
| Operating Time | 10...20 ms coil de-energisation and NO opening,10...20 ms coil energisation and NO closing |
| Flame Retardance | V1 conforming to UL 94,requirement 2 conforming to NF F 16-101,requirement 2 conforming to NF F 16-102 |
| Device short name | CA2K |
| Depth | 57 mm |
| Height | 58 mm |
| width | 45 mm |
| Utilisation category | DC-13,AC-15 |
| Operating altitude | 2000 m without derating |
| Compatibility code | CA2K |
| Range | TeSys |
| IP degree of protection | IP2X |
| Height | 4.8 |
| Length | 6.6 |
| Width | 6.3 |
