GoPact MTS 315 - Manual Transfer Switch, 4 poles, 250A, 415VAC 50/60Hz, extended rotary handle, open transition
- Description
- Specifications
- Reviews
Description
GoPacT MTS
Affordable manual transfer switches up to 2000 amps, to secure power supply. GoPact MTS is a specially designed Manual Transfer Switch range dedicated to small and medium-size buildings, factories, OEMs, and other demanding applications. It is an economical solution that provides the best value for money in its class.
Hinged Safety Shrouds
Terminal shrouds provide a complete touch-proof design. They are hinge-type; hence, terminals can be inspected without removing these shrouds.
Flexible Control
Flippable operating handle enables the user to operate the handle with two hands for GoPact MTS 315 to 2000. Interchangeable dual shaft position with site convertibility for GoPact MTS 200 to 1000.
Reliable & Complete
The self-interlocked and dual dead-center mechanism provides higher reliability for the manual transfer switch function. All inter-phase barriers and source separators are included with the product.
Enhance your power solutions with our extensive range of accessories

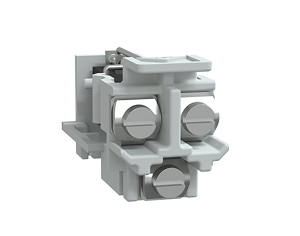

Auxiliary Contact kit

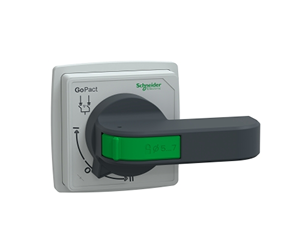

Operating handle
Terminal Shrouds
Gain peace of mind, quality, and value for your installations
High Reliability at Affordable Prices
Considering the changing expectations of customers and a need for an affordable and reliable solution, we introduce the GoPact range of MCCBs with operational voltages up to 415V, insulation voltage up to 440V and higher breaking capacities up to 70kA at 415V AC.
The thermal magnetic trip units (16A to 800A) offers comprehensive protection for all needs. System designers and users can choose and implement the protection schemes fitting to their needs.
GoPact MCCB 800 ETU 2.4 is equipped with electronic trip unit offering advanced protection.
Compactness
Lorem Ipsum is simply dummy text of the printing and
Robustness
Lorem Ipsum is simply dummy text of the printing and
Simplicity and Flexibility
Lorem Ipsum is simply dummy text of the printing and
Overview
| ICW Rated Short Time Withstand Current | 18 kA during 1 s conforming to IEC 60947-4-3 28 kA during 0.2 s conforming to IEC 60947-4-3 18 kA during 0.1 s conforming to IEC 60947-6-1 |
|---|---|
| Temperature derating table | 40 °C ( 250 A ) 45 °C ( 250 A ) 50 °C ( 250 A ) 55 °C ( 250 A ) |
| [ithe] Conventional Enclosed Thermal Current | 250 A (40 °C) |
| Net weight | 7 kg |
| Number of Contact Position | 3 |
| Product or Component Type | Manual transfer switch |
| Product Name | GoPact MTS 315 |
| Breaking Capacity | 2000 A AC-23A |
| Control Type | Extended rotary handle |
| Mechanical Interlocking | With mechanical interlocking |
| Frame Size | 315 |
| Transfer Switch Class | PC |
| [Ie] Rated Operational Current | AC-21A: 250 A conforming to IEC 60947-3 AC-22A: 250 A conforming to IEC 60947-3 AC-23A: 250 A conforming to IEC 60947-3 AC-31B: 250 A conforming to IEC 60947-6-1 AC-32B: 250 A conforming to IEC 60947-6-1 |
| [ue] Rated Operational Voltage | 415 V AC 50/60 Hz |
| [Icm] Rated Short-Circuit Making Capacity | 36 kA peak |
| Mechanical Durability | 16000 cycles |
| Product Certifications | IECEE CB Scheme |
| [ui] Rated Insulation Voltage | 1000 V AC |
| Connections - Terminals | 1 cable with lug wire size 185 mm² |
| Depth | 193 mm without handle: 301 mm with handle: |
| Electrical Durability | 1000 cycles 415 V |
| Height | 239 mm |
| IP degree of protection | IP54 front face conforming to IEC 60529 |
| Mounting support | Backplate |
| Range of Product | GoPact MTS |
| Standards | IEC 60947-3 IEC 60947-6-1 |
| Tightening Torque | 20 N.m |
| width | 260 mm |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Rated Operational Power In W | 160 kW AC-23A conforming to IEC 60947-3 |
| Device Application | Change source of supply |
| Locking options description | Padlocking in OFF position 1 to 3 padlocks |
| Operating altitude | 2000 m 100 % of In 3000 m 96 % of In 4000 m 93 % of In 5000 m 89 % of In |
| Suitability for isolation | Yes conforming to IEC 60947-3 |
| Height | 26 |
| Length | 45.2 |
| Width | 27.2 |
| Poles Description | 4P |
