| Device Mounting |
Fixing hole - diameter: 22.5 mm |
| Operating Position |
Any position |
| Product or Component Type |
complete push-button |
| Contact Operation |
Slow-break |
| Contacts Usage |
Standard contacts |
| Fixing Center |
>= 30 x 40 mm (1...6 mm thick panel) zamak - thickness: 1…6 mm |
| Mechanical Durability |
3000000 cycles |
| Contacts Material |
Silver alloy (Ag/Ni) |
| Operator Profile |
Red flush, unmarked |
| Shape Of Signaling Unit Head |
Round |
| Short-circuit Protection |
10 A gL fuse type gG conforming to IEC 60947-5-1 |
| Type Of Operator |
Spring return |
| Cap/Operator Or Lens Colour |
red |
| Contacts Type and Composition |
1 NC |
| Mounting Diameter |
22 mm |
| Bezel Material |
Chromium plated metal |
| Fixing Collar Material |
Zamak |
| Head Type |
Standard |
| IK Degree Of Protection |
IK06 |
| Operating Travel |
2.88 mm (NO changing electrical state) 5.0 mm (total travel) |
| [ui] Rated Insulation Voltage |
600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-1 |
| Ambient air temperature for storage |
-40…70 °C
|
| Connections - Terminals |
Screw clamp terminal, <= 2 x 1.5 mm² with and without cable ends
Screw clamp terminal, <= 1 x 2.5 mm² with and without cable ends
Screw clamp terminal, >= 1 x 0.5 mm² with and without cable ends
Faston terminals, connection size: 6.3 mm |
| Device Presentation |
Complete product
|
| Device short name |
XB2 |
| Electrical Durability |
1000000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.27 A at 250 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Fixing Mode |
Fixing screw beneath head recommended torque: 0.8 N.m
Fixing screw beneath head recommended torque: 1.0 N.m |
| IP degree of protection |
IP65 |
| Overvoltage Category |
Class I conforming to IEC 60536
|
| Range of Product |
Easy Harmony XB2 |
| Standards |
IEC 60947-5-1
IEC 60947-5-4
IEC 60947-1
GB/T 14048.1
GB/T 14048.5 |
| Tightening Torque |
0.8…1.0 N.m |
| Marking |
Unmarked |
| Depth |
54.5 mm |
| Height |
30 mm |
| width |
40 mm |
| [Ith] Conventional Free Air Thermal Current |
10 A conforming to IEC 60947-5-1 |
| Product Compatibility |
ZB2..C |
| Length |
7 |
| [Ie] Rated Operational Current |
3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-4
0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-4 |
| Ambient air temperature for operation |
-15-65 °C |
| Product or component type |
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
complete push-button |
|
7 |
|
complete push-button |
|
complete push-button |
|
complete push-button |
| Terminals description ISO n°1 |
(11-12)NC |
| Brand |
Schneider Electric |

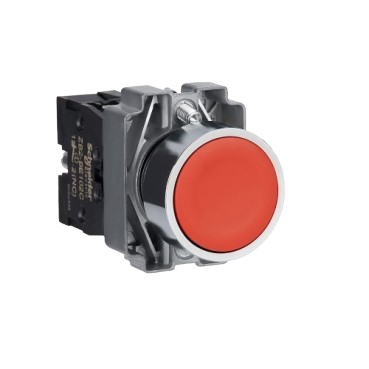

| Product Hover Image |
