Motor circuit breaker, TeSys GV2, 3P, 25 A, magnetic, rotary handle, screw clamp terminals
Description
TeSys Deca Frame 2
The new generations of TeSys Deca Motor Circuit Breakers Frame 2 to to protect motors up to 32A (15kW / 400V) offers a complete solution for almost any application. It provides short circuit protection, overload protection, motor (ON/OFF) control.
Easy Selection
It features a diverse selection of GVs, including magnetic and thermal magnetic options, available in various sizes such as GV2, GV3, and GV4. This variety enables us to cater to a wide range of needs and preferences.

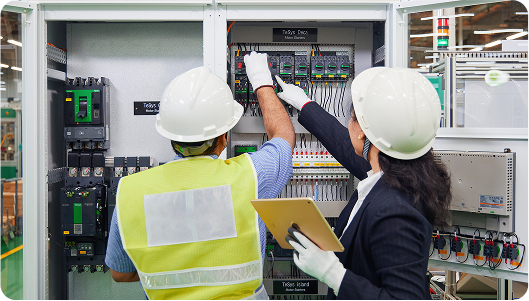

Simple to install
Is designed for ease of installation and operation, featuring multi-standard screws that simplify the process. Additionally, the EverLink terminals ensure a safe and long-lasting power connection, providing reliability and peace of mind.
Efficiency
We offer a seamless digital customer experience for accessing technical documents, ensuring you have all the information you need at your fingertips.
Enhance your power solutions with our extensive range of accessories

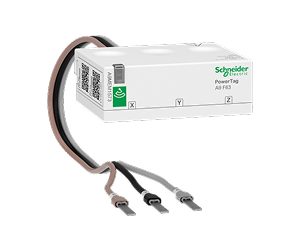

Energy Sensor

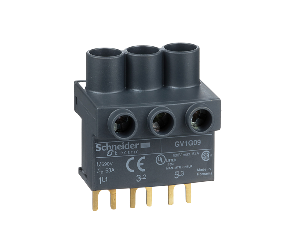

Terminal Block

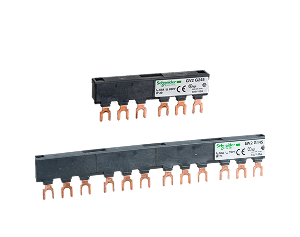

Comb busbar
Gain peace of mind, quality, and value for your installations

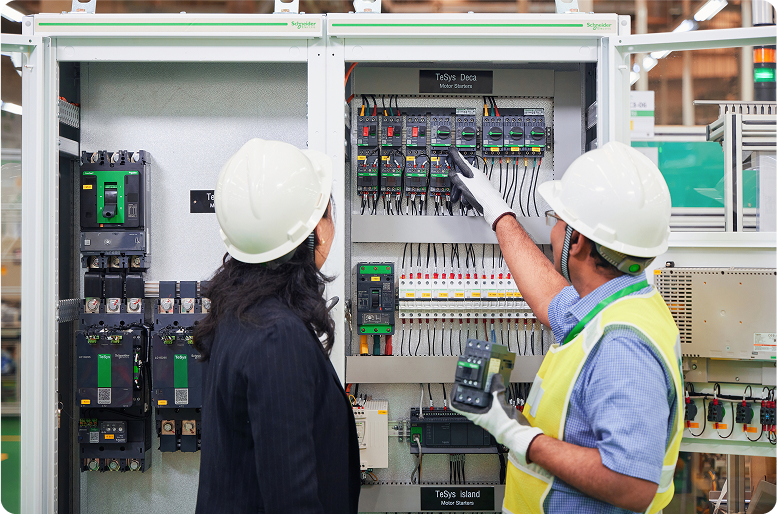

Motor Safety and Control with TeSys Deca
The GV2 range delivers reliable motor protection up to 15 kW, offering both thermal-magnetic and magnetic options. It supports multiple control methods and connector types, ensuring flexible installation and easy integration.
Universal Integration
Lorem Ipsum is simply dummy text of the printing and
Flexible connection
Lorem Ipsum is simply dummy text of the printing and
Standard Sync
Lorem Ipsum is simply dummy text of the printing and
Product Details
| Activity | PPCTR |
|---|---|
| Part Number | GV2L22 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| breaking capacity | 50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| suitability for isolation | yes conforming to IEC 60947-1 § 7-1-6 |
| trip unit technology | magnetic |
| utilisation category | category A conforming to IEC 60947-2, AC-3 conforming to IEC 60947-4-1 |
| ambient air temperature for storage | -40-80 °C |
| colour | dark grey |
| compatibility code | GV2L |
| control type | rotary handle |
| Depth | 97 mm |
| device application | motor protection |
| device short name | GV2L |
| Electrical Durability | 100000 cycles for AC-3 at 415 V In |
| fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Height | 89 mm |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| mechanical durability | 100000 cycles |
| net weight | 0.33 kg |
| network frequency | 50/60 Hz conforming to IEC 60947-2 |
| network type | AC |
| operating altitude | 2000 m |
| Poles Description | 3P |
| product certifications | CCC, UL, CSA, EAC, LROS (Lloyds register of shipping), BV, RINA, DNV-GL, UKCA, IECEE CB Scheme |
| product or component type | motor circuit breaker |
| Range | TeSys Deca |
| range of product | TeSys GV2, TeSys Deca |
| width | 45 mm |
| ambient air temperature for operation | -20-60 °C |
| standards | EN/IEC 60947-2, UL 60947-4-1, CSA C22.2 No 60947-4-1 |
| mechanical robustness | shocks: 30 Gn for 11 ms, vibrations: 5 Gn, 5...150 Hz |
| magnetic tripping current | 327-327 A |
| [Ith] conventional free air thermal current | 25 A conforming to IEC 60947-4-1 |
| climatic withstand | conforming to IACS E10 |
| motor power kW | 9-9 kW at 400/415 V AC 50/60 Hz, 11-11 kW at 400/415 V AC 50/60 Hz, 11-11 kW at 500 V AC 50/60 Hz, 15-15 kW at 500 V AC 50/60 Hz, 18.5-18.5 kW at 690 V AC 50/60 Hz |
| maximum operating rate | 40 cyc/h |
| fixing mode | 35 mm symmetrical DIN rail: clipped, panel: screwed (with 2 x M4 screws) |
| direct connector | without |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| tightening torque | 1.7 N.m - on screw clamp terminal |
