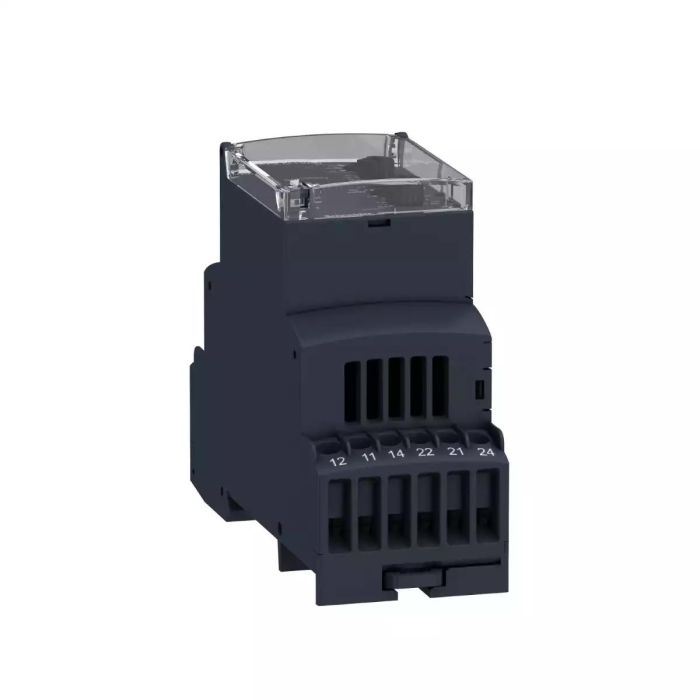

Modular liquid level control relay, Harmony, 5A, 2CO, 24...240V AC DC

Name: Modular liquid level control relay, Harmony, 5A, 2CO, 24...240V AC DC
Brand: Schneider Electric
SKU: RM35LM33MW
Price: 292.923386 AED
Availability: InStock

RM35LM33MW

Be the first one to review this.

AED 292.92

Excl. Tax

To View the best prices please Sign in / Register.

Description

How to Video

Promotional Video

Product Details

Activity	IDSIG
Part Number	RM35LM33MW
Rated current	5:00 AM
[Uc] control circuit voltage	24...240 V
[Ui] rated insulation voltage	250 V conforming to IEC 60664-1
[Uimp] rated impulse withstand voltage	4 kV conforming to IEC 60255-5, 4 kV conforming to IEC 60664-1, 4 kV conforming to IEC 61000-4-5
[Us] rated supply voltage	24...240 V AC/DC 50/60 Hz +/- 10 %
ambient air temperature for storage	-40-70 °C
compatibility code	RM3
connections - terminals	screw connectors
control circuit voltage limits	- 15 % + 10 % Un
IP degree of protection	IP20 (terminals) conforming to IEC 60529, IP30 (casing) conforming to IEC 60529
marking	CE : 73/23/EEC, CE : EMC 89/336/EEC
maximum switching voltage	250 V AC/DC
mechanical durability	30000000 cycles
minimum switching current	10 mA at 5 V DC
mounting support	35 mm symmetrical DIN rail conforming to EN/IEC 60715
operating position	any position without derating
operating rate	<= 360 operations/hour full load
overvoltage category	III conforming to IEC 60664-1
pollution degree	3 conforming to IEC 60664-1
product certifications	CSA, GL, UL, C-Tick, GOST
product or component type	level control relay
range of product	Harmony Control Relays
relative humidity	95-95 % at 55-55 °C conforming to IEC 60068-2-30
supply voltage limits	20.4-264 V AC/DC
tightening torque	0.6-1 N.m conforming to IEC 60947-1
utilisation category	AC-12 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1
width	35 mm
contacts type and composition	2 C/O
Maximum power consumption in W	1.5 W DC
Reset time	1750 ms
Immunity to microbreaks	100 ms DC, 90 ms AC
Measurement error	0.5 %/°C with temperature variation
Switching capacity in VA	1250 VA
Nominal output current	5:00 AM
Housing material	self-extinguishing plastic
Time delay type	adjustable 0.1...5 s, +/- 10 %
Repeat accuracy	+/- 2 % for time delay
Maximum switching current	5 A AC/DC
Functionality	resistive probe detection
Output contacts	2 C/O
Dielectric test voltage	2 kV, 1 min AC 50 Hz conforming to IEC 60255-5, 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1
Relay monitored parameters	detection by resistive probes
Maximum power consumption in VA	5 VA AC
Measurement range	250 Ohm...1 MOhm
Relay name	RM35L
Relay type	level control relay
Run-up delay at power-up	0.6 s
Cable capacitance	1 nF at HS (High Sensitivity) for probe cable, 2.2 nF at St (Standard Sensitivity) for probe cable, 4.7 nF at LS (Low Sensitivity)
Sensitivity scale	0.25...5 kOhm LS (Low Sensitivity), 5...100 kOhm St (Standard Sensitivity), 50...1000 kOhm HS (High Sensitivity)
Sensitivity adjustment	5-100 %
Maximum supply current for sensors	1 mA
electromagnetic compatibility	emission standard for industrial environments conforming to EN/IEC 61000-6-4, emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3, immunity for industrial environments conforming to NF EN/IEC 61000-6-2
ambient air temperature for operation	-20-50 °C
standards	EN/IEC 60255-6
local signalling	LED (yellow) for relay ON, LED (green) for power ON, LED (yellow) for timer ON
safety reliability data	B10d = 170000, MTTFd = 182.6 years
insulation resistance	> 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1, > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5, > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1
Measurement Accuracy	+/- 10 % of the full scale value, +/- 20 % for the HS range
Electrical Durability	100000 cycles
