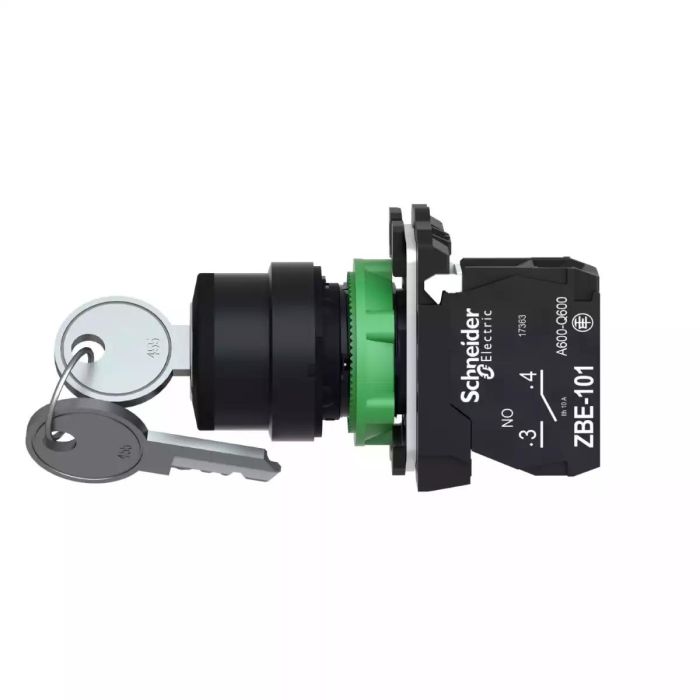

Key switch selector, plastic, black, Ø22, key n°455, 2 positions, stay put, 1 NO

Name: Key switch selector, plastic, black, Ø22, key n°455, 2 positions, stay put, 1 NO
Brand: Schneider Electric
SKU: XB5AG21
Price: 110.617507 AED
Availability: InStock

XB5AG21

Be the first one to review this.

AED 110.62

Excl. Tax

To View the best prices please Sign in / Register.

Description

How to Video

Promotional Video

Product Details

Activity	IDSIG
Part Number	XB5AG21
[Ith] conventional free air thermal current	10 A conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage	600 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage	6 kV conforming to EN 60947-1
[Us] rated supply voltage	230...240 V
ambient air temperature for storage	-40-70 °C
bezel material	dark grey plastic
compatibility code	XB5
connections - terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
contact operation	slow-break
contacts material	silver alloy (Ag/Ni)
depth	96 mm
device short name	XB5
electrical reliability	λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
height	42 mm
IK degree of protection	IK06 conforming to IEC 50102
IP degree of protection	IP69, IP69K, IP66 conforming to IEC 60529, IP67
key withdrawal position	left-hand
mechanical durability	1000000 cycles
mounting diameter	22 mm
net weight	0.831 kg
operator position information	2 positions 90°
operator profile	key switch
positive opening	without
product certifications	LROS (Lloyds register of shipping), CSA, DNV, GL, BV, UL
product or component type	selector switch
protective treatment	TH
range of product	Harmony XB5
sale per indivisible quantity	1
shape of screw head	cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver
shape of signaling unit head	round
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
short-circuit protection	10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Terminals description ISO n°1	(13-14)NO
tightening torque	0.8-1.2 N.m conforming to EN 60947-1
type of operator	stay put
width	30 mm
contacts type and composition	1 NO
NEMA degree of protection	NEMA 13, NEMA 4X
Customizable	no
Head type	standard
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
Contacts usage	standard contacts
Torque value	0.14 N.m NO changing electrical state
Type of keylock	key 455
vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
ambient air temperature for operation	-40-70 °C
standards	UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-5-1, JIS C8201-1
[Ie] rated operational current	3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
Device Presentation	complete product
Electrical Shock Protection Class	class II conforming to IEC 60536
Electrical Durability	1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
