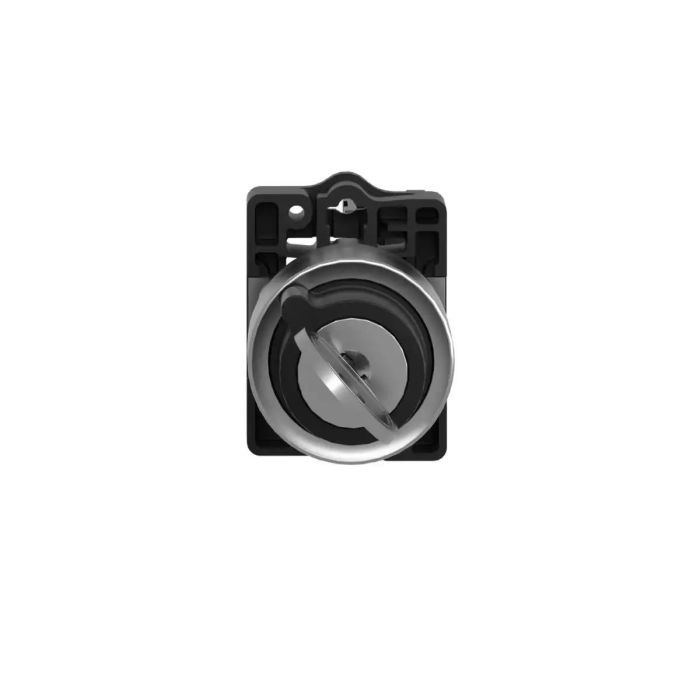

Name: Key selector switch - Ã˜22 - 2 positions - stay put - 1NO
Brand: Schneider Electric
SKU: XA2EG21
Price: 50.460974 AED
Availability: InStock

Key selector switch - Ã˜22 - 2 positions - stay put - 1NO

XA2EG21

Be the first one to review this.

AED 50.46

Excl. Tax

To View the best prices please Sign in / Register.

Activity	IDSIG
Part Number	XA2EG21
Weight	56.4 g
Package1 LengthWidthHeight	7.5 cm x 4.0 cm x 2.0 cm
Country of Manufacturing	China
[Ie] rated operational current	3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600
[Ith] conventional free air thermal current	10:00 AM
[Ui] rated insulation voltage	600 V
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
ambient air temperature for operation	-20-55 °C
ambient air temperature for storage	-40-70 °C
bezel material	plastic
compatibility code	XA2E
connections - terminals	, clamping capacity: <= 2 x 1.5 mm², , clamping capacity: <= 1 x 2.5 mm², , clamping capacity: >= 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm
contact operation	slow-break
depth	85.7 mm
device short name	XA2
electrical durability	500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
electrical reliability	λ < 10exp(-8) at 24 V
fixing center	>= 30 x 40 mm (panel) - thickness: 1-5 mm
fixing collar material	plastic
fixing mode	fixing nut: 2-2.4 N.m
height	42 mm
IK degree of protection	IK03 conforming to IEC 60529
IP degree of protection	IP54 conforming to IEC 60529
key number	455
key withdrawal position	left
mechanical durability	100000 cycles
mounting diameter	22 mm
net weight	0.064 kg
operator position information	2 positions
operator profile	key switch
overvoltage category	class I conforming to IEC 536
product certifications	CCC, CE
product or component type	complete selector switch
protective treatment	TC
range of product	Easy Harmony XA2
shock resistance	70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
short-circuit protection	10 A fuse type gL conforming to IEC 60269-1
standards	IEC 60947-5-1, IEC 60947-1, GB 14048.1, GB 14048.5
tightening torque	0.8-0.8 N.m
type of operator	stay put
vibration resistance	10 gn (f= 40-500 Hz) conforming to IEC 60068-2-6
width	30 mm
contacts type and composition	1 NO
vibration resistance	10 gn (f= 40-500 Hz) conforming to IEC 60068-2-6
ambient air temperature for operation	-20-55 °C
standards	IEC 60947-5-1, IEC 60947-1, GB 14048.1, GB 14048.5
[Ie] rated operational current	3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600
Electrical Durability	500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
