Easypact CVS - CVS400N circuit breaker - 3P/3d
Description
EasyPact CVS MCCB
EasyPact CVS Molded Case Circuit Breakers with adjustable settings, rated from 100A to 630A is designed to meet the requirements of the majority of common protection applications in small to medium-sized buildings and delivers a high level of performance and cost-saving functionality.
Reliability
The double break mechanism ensures high fault current limitation and robust protection. With high endurance and Vigi module, it offers reliable earth leakage protection for safety.
Simplicity
Only three frame sizes up to 630A, standard snap-fit accessories, and the same footprint as ComPacT MCCBs for easy retrofitting and system upgrades.
Safety
It is suitable for isolation per IEC 60947-2. The Class II front face fits Class II switchboards without insulation downgrade. Key locks ensure safety by locking the breaker in the OFF position.
Enhance your power solutions with our extensive range of accessories

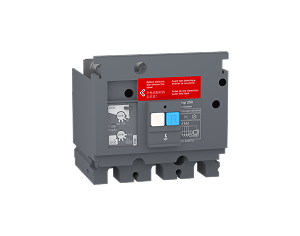

Earth leakage protection

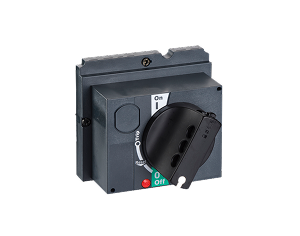

Direct rotary handle

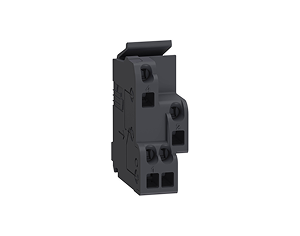

Auxiliary contact
Gain peace of mind, quality, and value for your installations
Gain peace of mind, quality, and value for your installations
Experience unparalleled reliability and efficiency with Schneider Electric's EasyPact CVS circuit breakers. These circuit breakers offer a comprehensive range of benefits that ensure optimal performance and safety.
Their modular design allows for easy installation and scalability, making them ideal for a wide range of applications, from industrial to commercial settings. Additionally, the intuitive interface and robust construction of EasyPact CVS circuit breakers ensure long-lasting durability and user-friendly operation.
Choose EasyPact CVS for a smart, reliable, and cost-effective solution to your electrical protection needs.
High Fault Protection
Lorem Ipsum is simply dummy text of the printing and
Modular Design
Lorem Ipsum is simply dummy text of the printing and
Enhanced Safety
Lorem Ipsum is simply dummy text of the printing and
Product Details
| Activity | PPCCB |
|---|---|
| Part Number | LV540415 |
| [ics] Rated Service Breaking Capacity | 70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 32 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-2 |
| breaking capacity | 70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 42 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Breaking Capacity Code | N |
| Connection Pitch | 45 mm |
| Contact Position Indicator | yes |
| Downside Connection | front |
| Earth-leakage Protection | without |
| Protected Poles Description | 3D |
| Trip Unit Name | TM-D |
| trip unit rating | 320-320 A at 40 °C |
| trip unit technology | thermal-magnetic |
| Upside Connection | front |
| utilisation category | category A |
| ambient air temperature for storage | -50-85 °C |
| compatibility code | CVS400 |
| control type | toggle |
| depth | 110 mm |
| device application | distribution |
| device short name | CVS400N |
| Electrical Durability | 6000 cycles 415 V In conforming to IEC 60947-2 |
| height | 255 mm |
| mechanical durability | 15000 cycles |
| mounting mode | fixed |
| mounting support | backplate |
| network frequency | 50/60 Hz |
| network type | AC |
| Poles Description | 3P |
| product certifications | IEC, GOST |
| product or component type | circuit breaker |
| Protection Type | short-circuit protection (magnetic), overload protection (thermal) |
| range | EasyPact |
| range of product | EasyPact CVS400...630 |
| width | 140 mm |
| Long time delay adjustment type | fixed |
| Instantaneous pick-up adjustment type Ii | adjustable |
| Short-time delay adjustment type | fixed |
| Instantaneous pick-up adjustment range | 5...10 x In |
| Long time pick-up adjustment range | 0.7...1 x In |
| Long time pick-up adjustment type Ir | adjustable |
| ambient air temperature for operation | -25-70 °C |
| standards | EN 60947-2, IEC 60947-2 |
| Electrical Shock Protection Class | class II |
