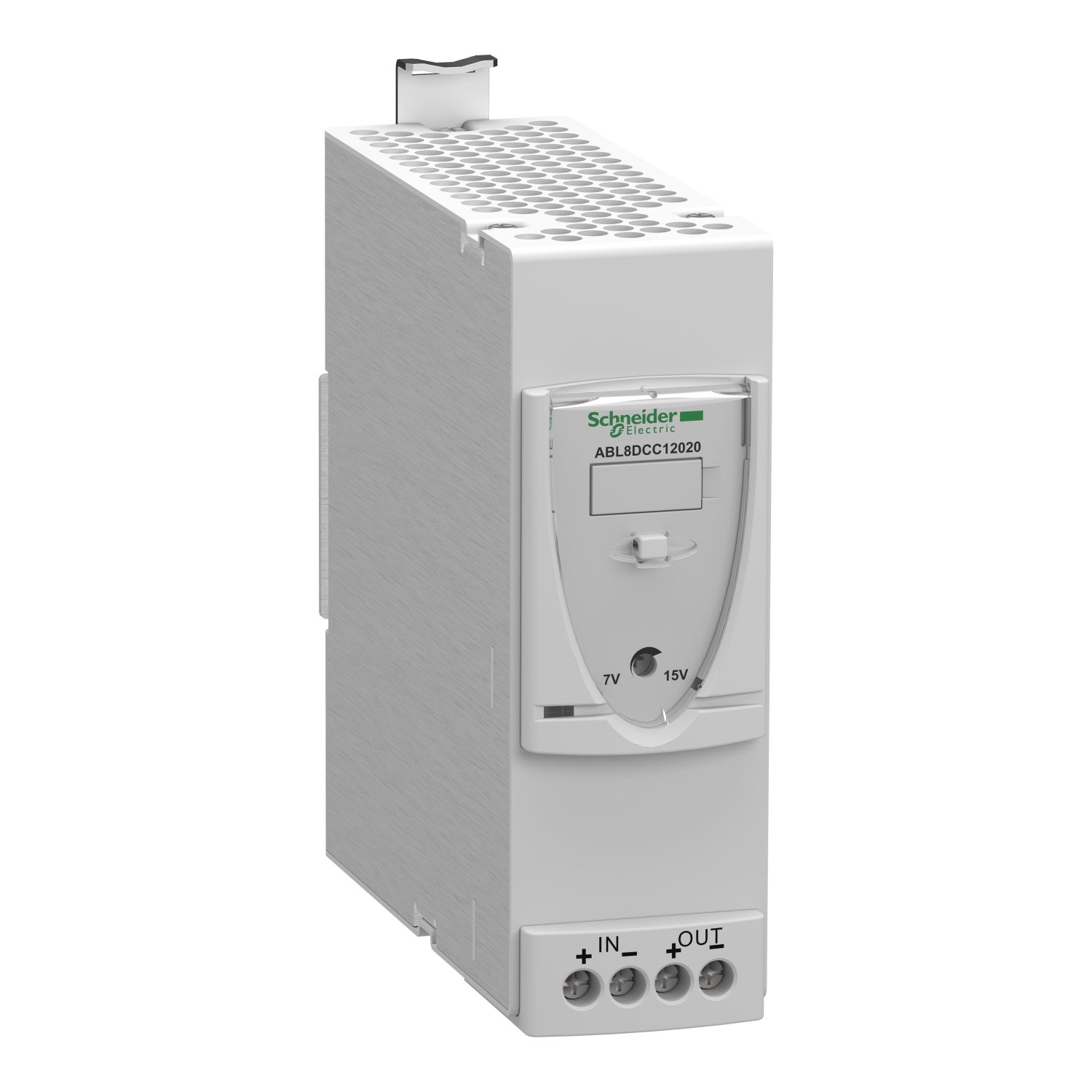

converter module 24 W - 24..28.8 V DC, 12 V DC - 2 A - for regulated SMPS
SKU :
ABL8DCC12020
Loading...
No sellers found for this product.
AEDÂ 811.64
AEDÂ 750.00
Excl. Tax
Free Shipping
To View the best prices please Sign in / Register.
Shipping:
Out of stock
- 1. Wide output voltage adjustment
- 2. Instant fault diagnosis thanks to front side LED indicators
- 3. Adjust the output voltage with a rotary trimmer
- 4. No additional protection required on input side
converter module 24 W - 24..28.8 V DC, 12 V DC - 2 A - for regulated SMPS
AEDÂ 811.64
AEDÂ 750.00
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description
Overview
| Activity | IDMST |
|---|---|
| Range of product | PHASEO UNIVERSAL |
| Product or component type | CONVERTER MODULE |
| Rated power in W | 24 W |
| Input voltage | 24...28.8 V DC |
| Output voltage | 12 V DC |
| Power supply output current | 2 A |
| Input voltage limits | 22...30 V |
| Efficiency | 82 % |
| Power dissipation in W | 4 W |
| Input protection type | AGAINST REVERSE POLARITY |
| Output voltage limits | 7...15 V |
| Line and load regulation | 1...3 % |
| Output protection type | AGAINST OVERLOAD, PROTECTION TECHNOLOGY: AUTOMATIC RESETAGAINST OVERVOLTAGE, PROTECTION TECHNOLOGY: TRIPPING IF U > 7.8 V, AUTOMATIC RESETAGAINST SHORT-CIRCUITS, PROTECTION TECHNOLOGY: AUTOMATIC RESET |
| Connections - terminals | FOR INPUT CONNECTION: SCREW TYPE TERMINALS, CONNECTION CAPACITY: 2 X 0.5...2 X 4 MM² AWG 24...AWG 10FOR OUTPUT CONNECTION: SCREW TYPE TERMINALS, CONNECTION CAPACITY: 2 X 0.5...2 X 4 MM² AWG 24...AWG 10 |
| Fixing mode | BY CLIPS ON 35 MM SYMMETRICAL DIN RAIL, OPERATING POSITION: HORIZONTALBY CLIPS ON 35 MM SYMMETRICAL DIN RAIL, OPERATING POSITION: VERTICAL |
| Operating altitude | 2000 M |
| Name of test | INDUCED ELECTROMAGNETIC FIELD CONFORMING TO IEC 61000-4-6 LEVEL 3RADIATED ELECTROMAGNETIC FIELD CONFORMING TO IEC 61000-4-3 LEVEL 3RAPID TRANSIENT CONFORMING TO IEC 61000-4-4 LEVEL 3SURGE CONFORMING TO IEC 61000-4-5 LEVEL 2CONDUCTED/RADIATED EMISSIONS CONFORMING TO EN 55022 CLASS BELECTROSTATIC DISCHARGES CONFORMING TO IEC 61000-4-2EMISSION CONFORMING TO IEC 61000-6-3 |
| Local signalling | 1 LED (GREEN) FOR OUTPUT VOLTAGE (> 6 V) |
| Net weight | 0.3 KG |
| IP degree of protection | IP20 CONFORMING TO IEC 60529 |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 0…90 % DURING OPERATION0…95 % DURING STORAGE |
| Overvoltage category | CLASS 3 |
| Vibration resistance | 2 GN (F= 11.9…150 HZ) CONFORMING TO IEC 61131-23.5 MM (F= 3…11.9 HZ) CONFORMING TO IEC 61131-2 |
| Dielectric strength | 500 V BETWEEN INPUT AND GROUND500 V BETWEEN INPUT AND OUTPUT500 V BETWEEN OUTPUT AND GROUND |
| Product certifications | RCMEACcCSAusUL |
| Environmental characteristic | EMC CONFORMING TO EN 50081-1EMC CONFORMING TO IEC 61000-6-3EMC CONFORMING TO IEC 61000-6-2SAFETY CONFORMING TO IEC 60950-1SAFETY CONFORMING TO IEC 61204 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 CM |
| Package 1 Width | 14.500 CM |
| Package 1 Length | 16.500 CM |
| Package 1 Weight | 601.000 G |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.000 CM |
| Package 2 Width | 40.000 CM |
| Package 2 Length | 60.000 CM |
| Package 2 Weight | 12.161 KG |
| Warranty (in months) | 18 |
